MIL-PRF-22885/74J
NOTES:
1. Type 1 terminal junction module accepts M39029/1-16-20 pin contacts.
2. Type 2 terminal block accepts M22885/80-50, -51 and -52.

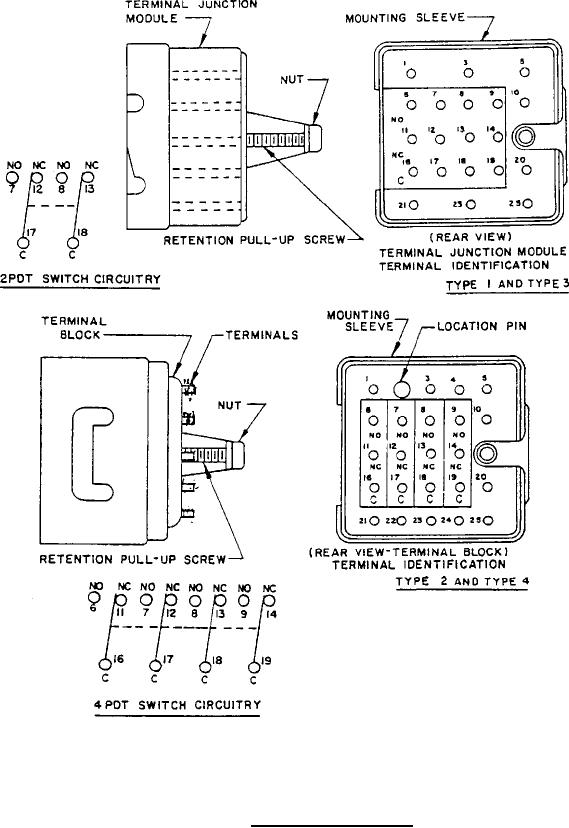

FIGURE 2. Switch circuitry schematics.
2
