INCH-POUND
MIL-PRF-22885/74J
4 June 2010
SUPERSEDING
MIL-PRF-22885/74H
28 April 2004
PERFORMANCE SPECIFICATION SHEET
SWITCH, PUSHBUTTON, ILLUMINATED,
4-LAMP, SOLID MOUNT, PLUG-IN MODULE
(INSERTABLE TYPE TERMINATION)
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein shall consist of this specification sheet and MIL-
PRF-22885.
.810 ±.005 SQ
3.850 Max
3.320 Max
Inches
mm
3.350 Max
.005
.13
.015
.38
.040
1.02
2.820 Max
.050
1.27
.200
5.08
.350
8.89
.740
18.80
NOTES:
.810
20.57
1. Dimensions are in inches.
.900
22.86
2. Unless otherwise specified, tolerance is ± .016 (.41 mm).
2.820
71.63
3. The design configuration is optional within envelope dimensions shown.
3.320
84.33
4. Metric equivalents are given for general information only.
3.350
85.09
5. Terminals shall be permanently identified as shown in figure 2.
3.850
97.79
6. Types 3 and 4 (shorter versions of types 1 and 2) are available in momentary action
and indicator versions only.

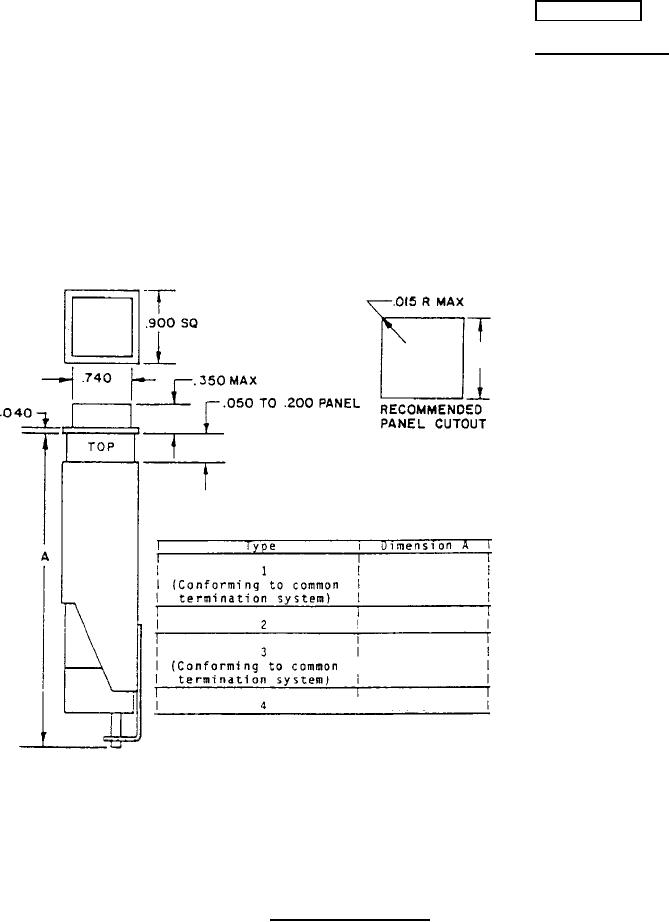

FIGURE 1. Complete switch assembly.
AMSC N/A
FSC 5930
