MIL-PRF-22885/109B

Inches

.015

0.38

.091

2.31

.092

2.34

.114

2.90

.130

3.30

.370

9.40

.384

9.75

.500

12.70

.682

17.32

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Dimensions apply for PC and connector module terminals only.

4. See figure 8 for additional applicable notes.

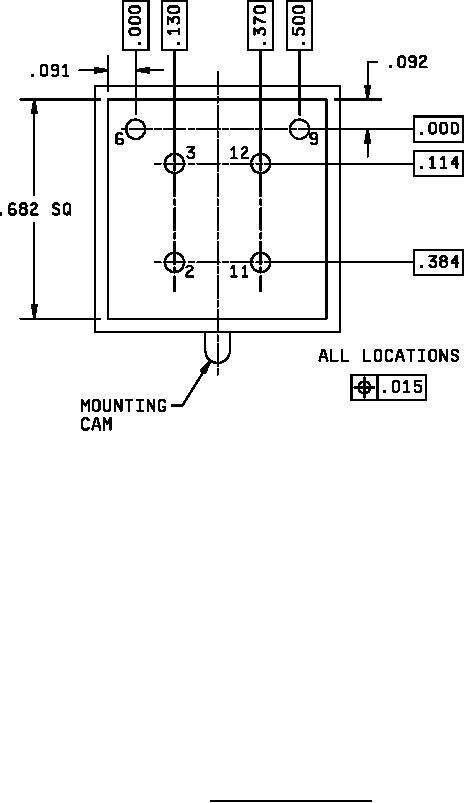

FIGURE 6. Indicator terminal locations.
