MIL-PRF-22885/109B

Mounting

Cam

Inches

.24

6.1

.53

13.5

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerances are .015 ( 0.38 mm) for three place decimals and .03 ( 0.8

mm) for two place decimals.

4. The push button is designed to prevent incorrect insertion into the switch housing.

5. The push button is held captive to the switch body by a retaining element to prevent accidental interchange.

6. The exact shape of the switch is optional provided the dimensions specified are not exceeded.

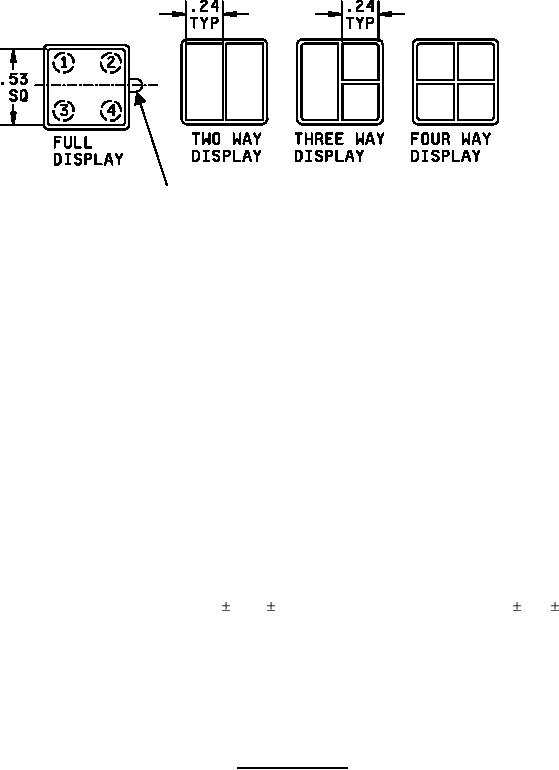

FIGURE 8. Lens configuration.
