MIL-PRF-22885/109B

BASE OF

TERMINALS

CATEGORY II

Inches

.002

0.05

.02

0.5

.030

0.76

.035

0.89

.04

1.00

.06

1.5

.10

2.5

.17

4.3

.180

4.57

.235

5.97

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. See figure 8 for additional applicable notes.

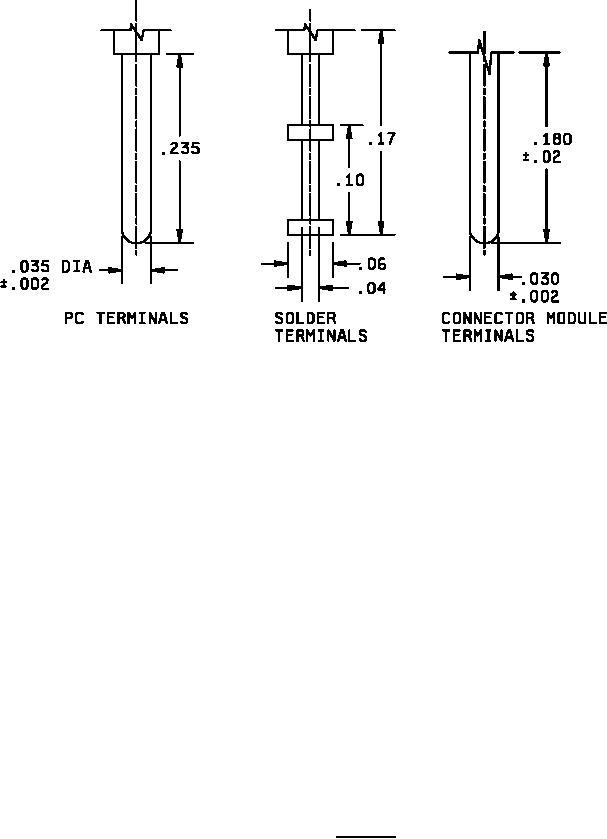

FIGURE 7. Terminals.
