MIL-PRF-22885-108 Switches, Pushbutton, Illuminated, 4-Lamp Replaceable Incandescent Or Non-Replaceable Light Emitting Diode \(Led\), 0.750 Square, Spdt, Dpdt, 4Pdt Silver Contacts - 2 Circuit \(5 Amperes\) Or Spdt \(7.5 Amperes\); Gold Contacts - Low Level To 1 Ampere, Sunlight Readable Display \(Dripproof, Watertight, Splashproof, Emi/Rfi Shielding, High Impact Shock Resistant

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-22885/108E

SAE-AS39029/22-192

Inches

.010

0.25

.03

0.8

.032

0.81

.14

3.6

.185

4.70

.187

4.75

.23

5.8

.235

5.97

.55

14.0

.60

15.24

.75

19.0

.760

19.30

2.52

64.0

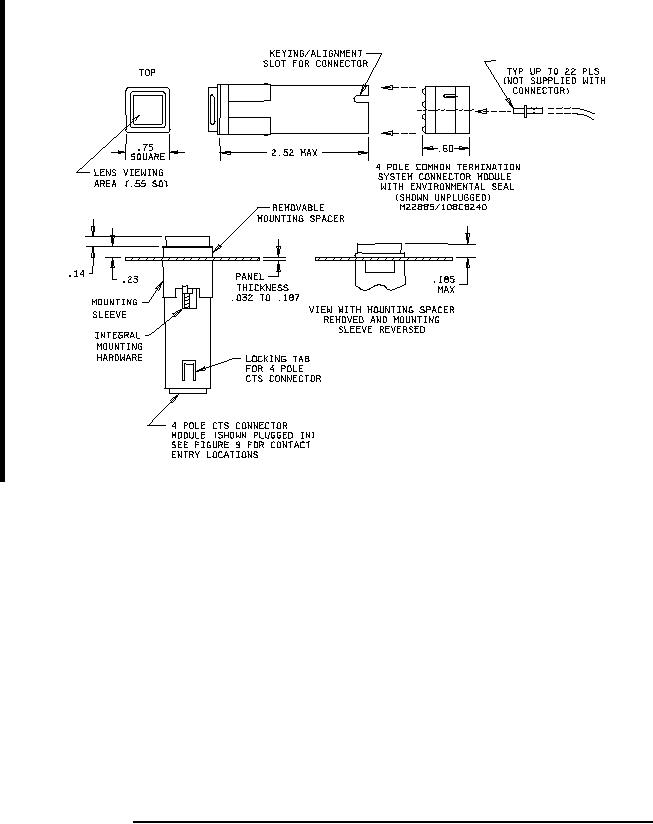

FIGURE 5. Switch - type V (enclosure design 1: unsealed with 4 pole common termination system).
