MIL-PRF-22885-108 Switches, Pushbutton, Illuminated, 4-Lamp Replaceable Incandescent Or Non-Replaceable Light Emitting Diode \(Led\), 0.750 Square, Spdt, Dpdt, 4Pdt Silver Contacts - 2 Circuit \(5 Amperes\) Or Spdt \(7.5 Amperes\); Gold Contacts - Low Level To 1 Ampere, Sunlight Readable Display \(Dripproof, Watertight, Splashproof, Emi/Rfi Shielding, High Impact Shock Resistant

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-22885/108E

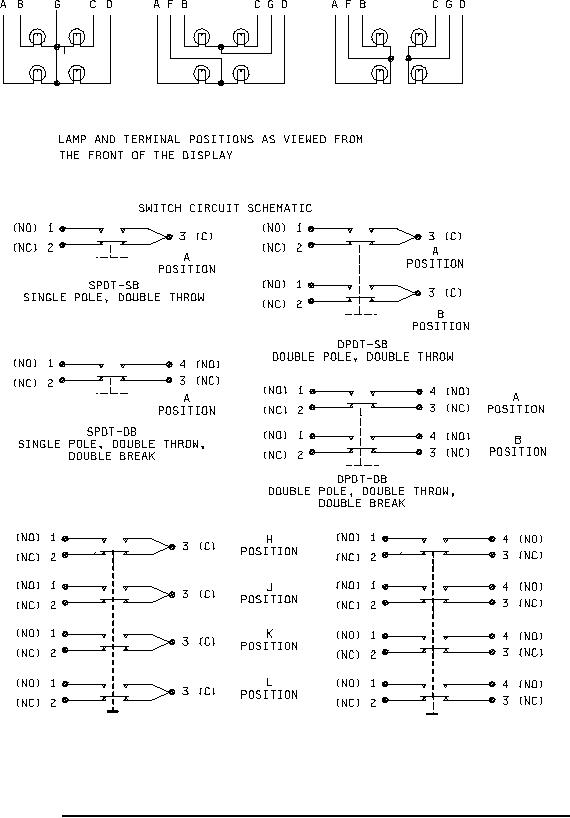

INCANDESCENT LAMP CIRCUIT SCHEMATIC
SINGLE CIRCUIT,
VERTICAL SPLIT CIRCUIT,
HORIZONTAL SPLIT CIRCUIT,
ONE COMMON
TWO COMMONS
TWO COMMONS
LAMP CIRCUIT
LAMP CIRCUIT
LAMP CIRCUIT
4PDT-SB
4PDT-DB
FOUR POLE, DOUBLE THROW
FOUR POLE, DOUBLE THROW,
DOUBLE BREAK
FIGURE 8. Lamp and switch circuit configurations, schematics, and recommended panel cutouts.
14
