MIL-PRF-22885/108E

SAE-AS39029/22-192

Inches

.010

0.25

.03

0.8

.032

0.81

.18

4.6

.187

4.75

.235

5.97

.290

7.37

.49

12.4

.71

18.0

.760

19.30

.96

24.4

1.654

42.01

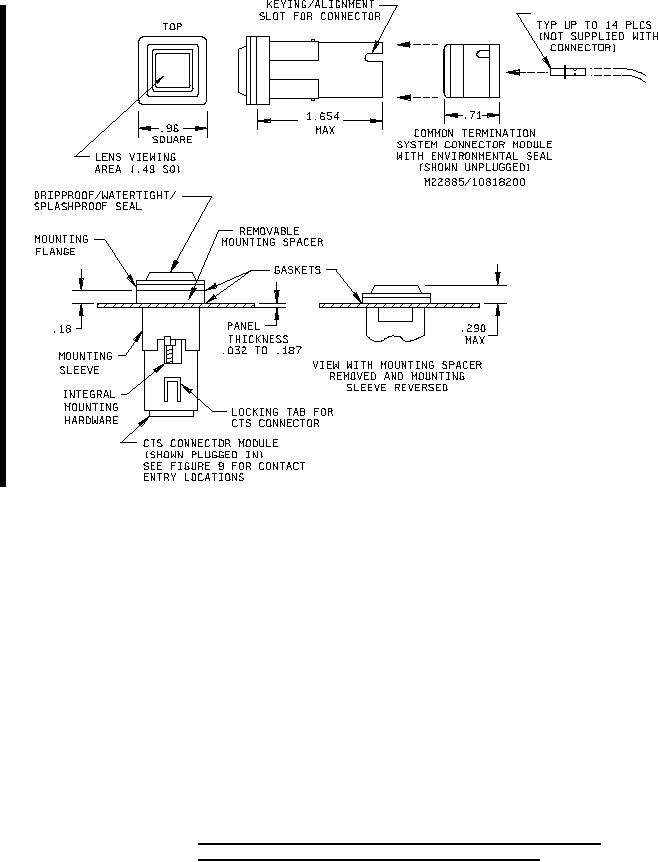

FIGURE 4. Switch - type IV (enclosure design 2, 3, and 4; dripproof, watertight,

and splashproof with 2 pole common termination system).
