INCH POUND
MIL-PRF-22885/108E
1 November 2006
SUPERSEDING
MIL-PRF-22885/108D
11 December 2001
PERFORMANCE SPECIFICATION SHEET
SWITCHES, PUSHBUTTON, ILLUMINATED, 4-LAMP REPLACEABLE
INCANDESCENT OR NON-REPLACEABLE LIGHT EMITTING DIODE (LED),
0.750 SQUARE, SPDT, DPDT, 4PDT SILVER CONTACTS - 2 CIRCUIT (5
AMPERES) OR SPDT (7.5 AMPERES); GOLD CONTACTS - LOW LEVEL TO 1
AMPERE, SUNLIGHT READABLE DISPLAY (DRIPPROOF, WATERTIGHT,
SPLASHPROOF, EMI/RFI SHIELDING, HIGH IMPACT SHOCK RESISTANT,
COMMON TERMINATION SYSTEM, NIGHT VISION GOGGLE COMPATIBLE)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the push buttons described herein shall consist of this specification and MIL-PRF-22885.
Inches
mm
.010
0.25
.03
0.8
.032
0.81
.14
3.6
.185
4.7
.187
4.75
.23
5.8
.235
5.97
.55
14.0
.75
19.0
.760
19.30
1.125
28.58

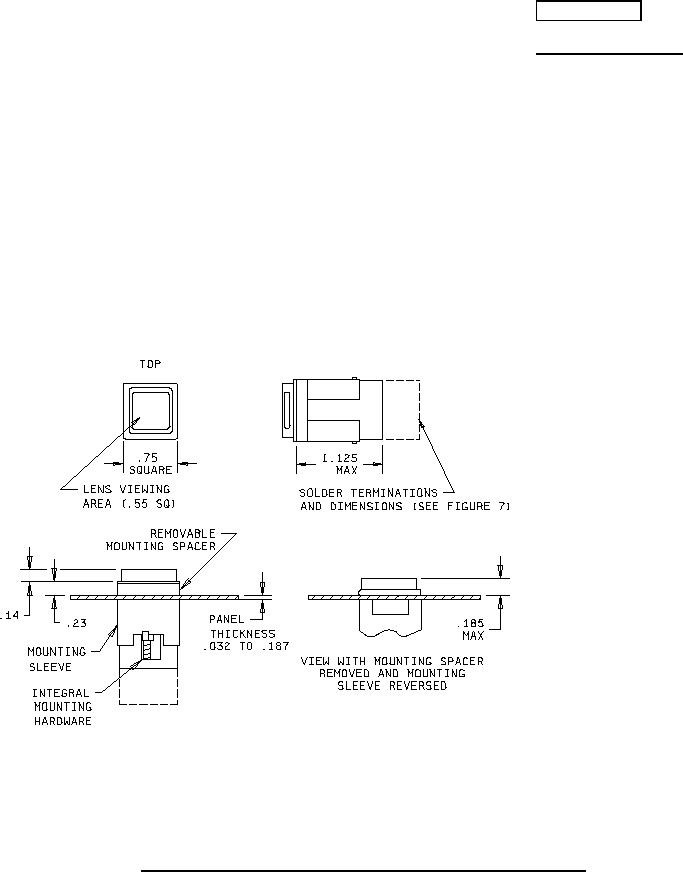

FIGURE 1. Switch - type I, 2 pole (enclosure design 1, unsealed with solder terminals).
