MIL-PRF-22885/103B
Inch
mm
.008
.20
.140
3.56
.35
.9
.750
19.05
No.
Dimension A
units
1
.750 (19.05)
2
1.621 (41.17)
3
2.492 (63.30)
4
3.363 (85.42)
N
A = .750 + .871 x N
(19.05 + 22.12) x N
NOTES:
1. Dimensions are in inches. Metric equivalents are given for general information only.
2. Unless otherwise specified, tolerances are ±.015 (.38 mm) for three place decimals and ±.03 (.8 mm) for two
place decimals.
3. Dimensions apply for both vertical and horizontal (shown) slot mounting.
4. Metric equivalents are in parentheses.

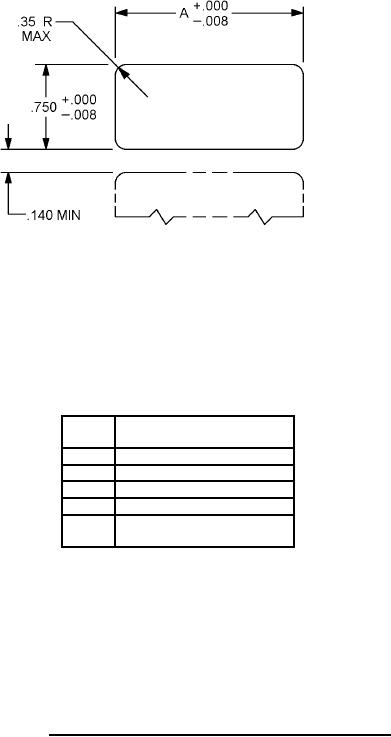

FIGURE 3. Horizontal and vertical mounting panel cutout dimensions.
6
