INCH-POUND
MIL-PRF-22885/103B
2 April 2004
SUPERSEDING
MIL-PRF-22885/103A
17 March 1999
PERFORMANCE SPECIFICATION SHEET
SWITCHES, PUSHBUTTON, ILLUMINATED,
2 AMPERES, 2PDT, 4PDT AND INDICATOR,
4 LAMP, SUNLIGHT READABLE
(EMI/RFI SHIELDING, MODULAR CONSTRUCTION)
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein
shall consist of this specification sheet and MIL-PRF-22885.
Inch
mm
Inch
mm
.06
1.5
.40
10.1
.21
5.3
.73
18.5
.25
6.4
1.99
50.6
.36
9.1
2.42
61.5

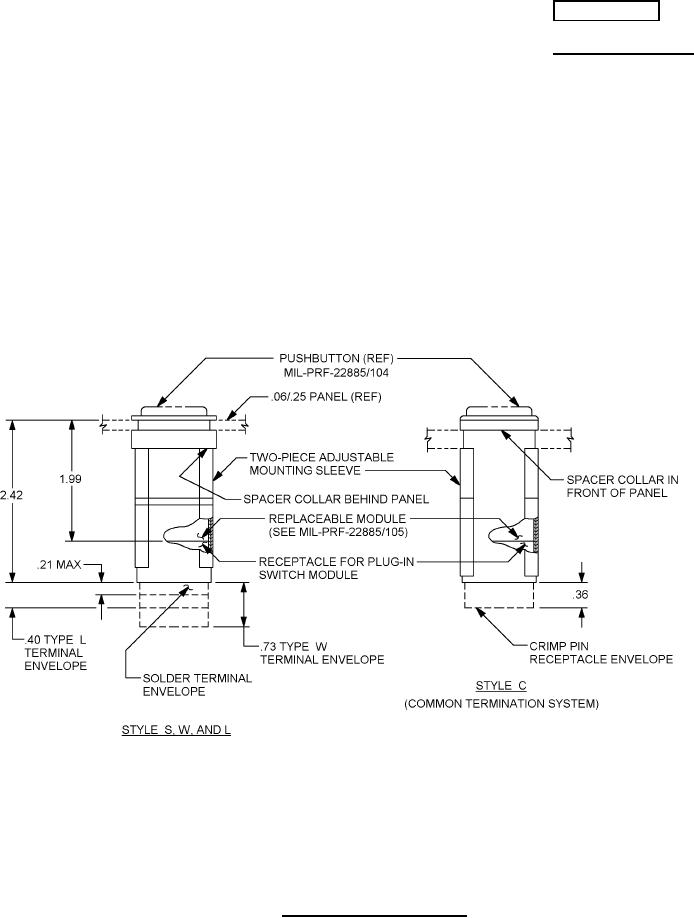

FIGURE 1. Push button switch assemblies.
AMSC N/A
FSC 5930
