MIL-PRF-8805/110E
FOR SOLDER TERMINATION
Normally open (N.O.): Round ended terminal
Normally closed (N.C.): Square ended terminal
FOR PRINTED CIRCUIT (PC) TERMINATION
Inches
mm
Inches
mm
.015
0.38
.093
2.36
.020
0.51
.128
3.25
.030
0.76
.142
3.61
.032
0.81
.146
3.71
.040
1.02
.256
6.50
.071
1.80
.292
7.42
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.015 (0.38 mm).
4. For solder termination, all circuit schematics are available.
5. For PC termination, circuit schematics 1, 2, and 6 are available.

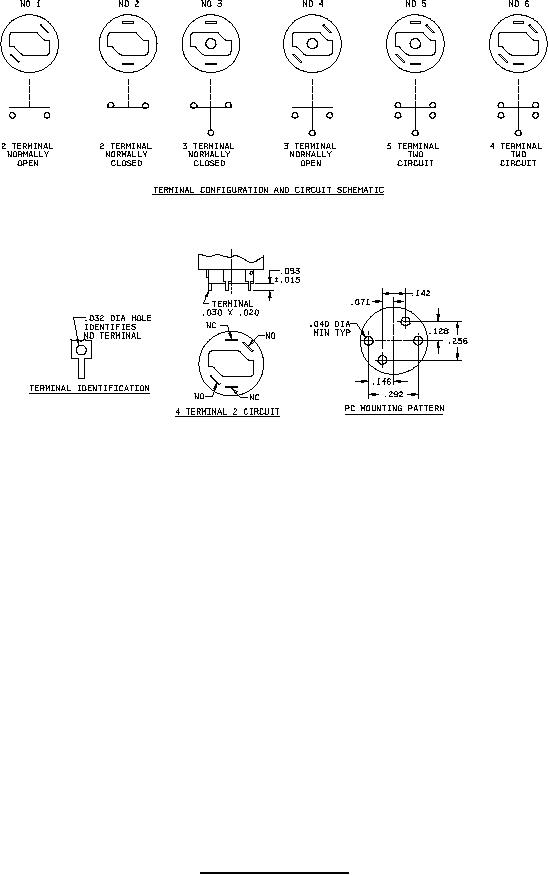

FIGURE 2. Terminal configuration.
3
