MIL-PRF-22885H

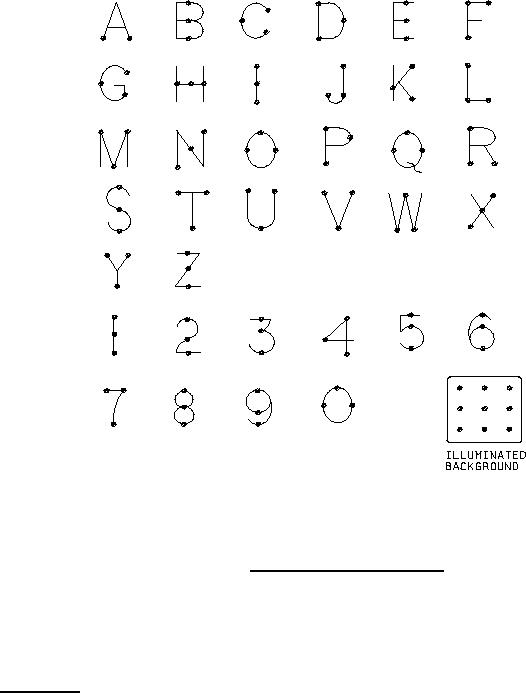

NOTE: Peripheral points are located midway between center line and edge of display area.
FIGURE 9. Luminance measurement points.
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not mandatory.)
6.1 Intended use. The switches covered by this specification are intended for use as panel displays and switching
devices in ac and dc applications. Multipole switches are not to be used on polyphase circuits exceeding 115 volts
line to line. The switches covered by this specification are military unique due to the fact that these devices must be
able to operate satisfactorily in military systems under the following demanding conditions: -55°C to +85°C operating
temperature range, 15 Gs of vibration, 75Gs of shock, 96 hours of salt spray, 15Gs of acceleration, 25,000 cycles of
endurance at the maximum temperature. In addition these military requirements are verified under a qualification
system. Commercial components are not designed to withstand these military environmental conditions.
37
