MIL-PRF-22885-93 Switch, Pushbutton, Illuminated, Rocker, Paddle, Logic Load To 3 Amperes, Unsealed

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


MIL-PRF-22885/93D
SQUARE
SQUARE
1 pole configuration
2 pole configuration
.033 max P. C. termination
.033 max P. C. termination
RECTANGULAR
RECTANGULAR
1 pole configuration
2 pole configuration
.033 max P. C. termination
.033 max P. C. termination
Illuminated devices shown for non-illuminated devices, lamp terminals are not provided.

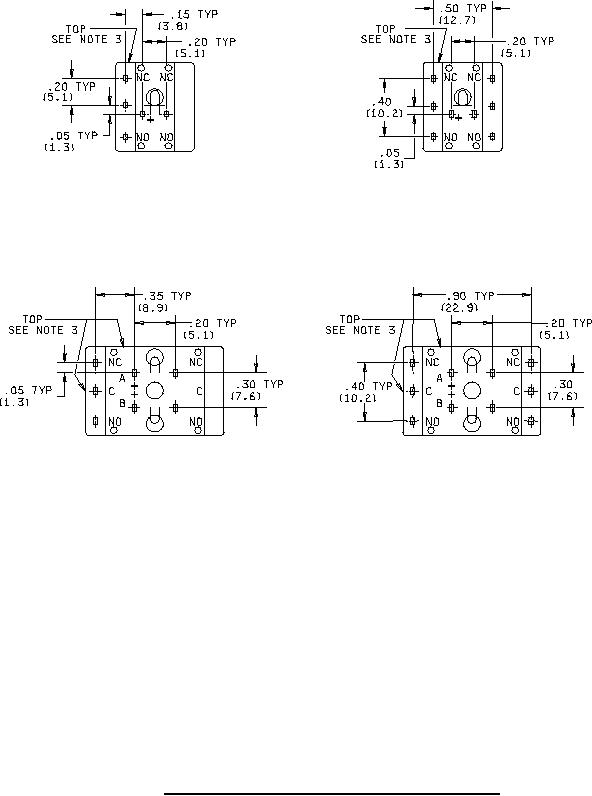

FIGURE 4. Terminal location-push buttons - printed circuit terminals.
8
