MIL-PRF-22885/93D
1 pole, .020 x .110
2 pole, .020 x .110
4 pole, .020 x .110
termination
termination
termination
Solder or quick connect terminals.
1 pole, .033 max P. C.
2 pole, .033 max P. C.
4 pole, .033 max P. C.
termination
termination
termination
Printed circuit terminals.
NOTES:
1. Dimensions are in inches.
2. Tolerances are ± .031 inch (± 0.79 mm) unless otherwise specified.
3. Top side of switch is shown to insure proper legend orientation. See application information.
4. Metric equivalents are given for general information only.
5. Metric equivalents are in parentheses.
6. Solder/quick connect terminals shall be located relative to top sides of switch as shown,
and terminal orientation is optional.
7. Solder terminals. Minimum spacing between terminals, and minimum distance to edge of housing is
.045 inch.

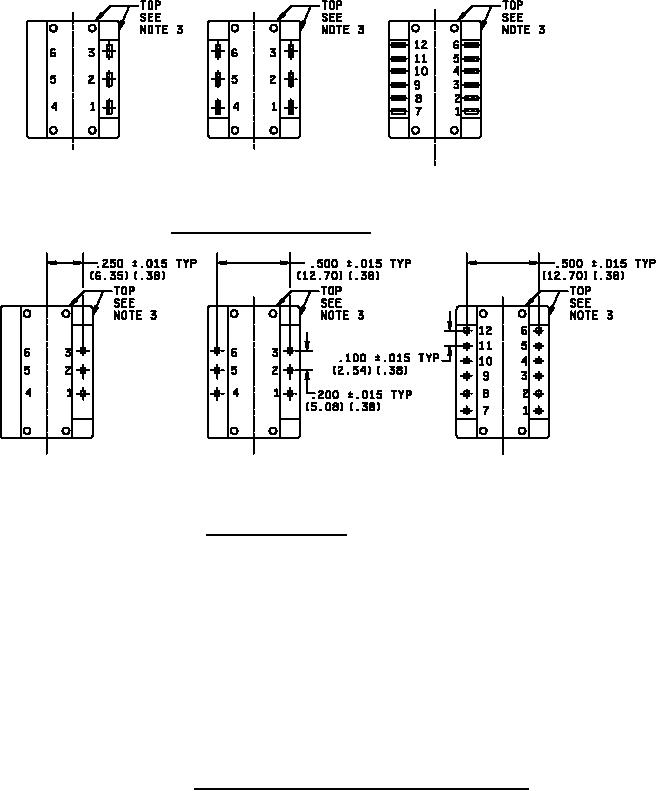

FIGURE 5. Terminal locations-rockers and paddles - nonilluminated.
10
