MIL-PRF-22885/92B
NOTES:
1. Solder hole will accept one #14 AWG stranded conductor
2 Dimensions are in inches.
3. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
4. Metric equivalents are in parentheses.

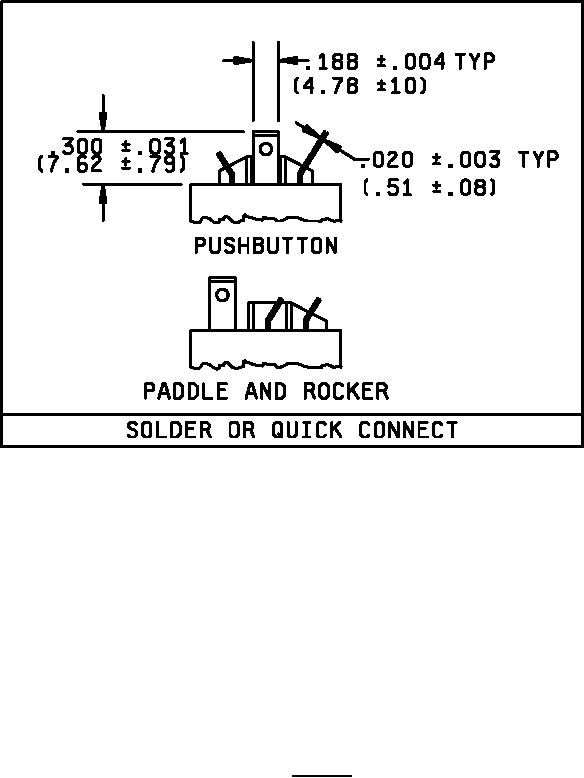

FIGURE 2. Terminals.
4
