MIL-PRF-22885/92B
Inches
mm
0.08
.003
0.13
.005
0.25
.010
0.38
.015
0.76
.030
1.52
.060
2.03
.080
4.32
.170
4.95
.195
6.73
.265
33.02
1.30
NOTES:
1. Dimensions are in inches.
2. Material shall be one-half hard brass.
3. May be suitably plated to resist corrosion.
4. Metric equivalents are given for general
information only and are based upon
1.00 inch = 25.4 mm.

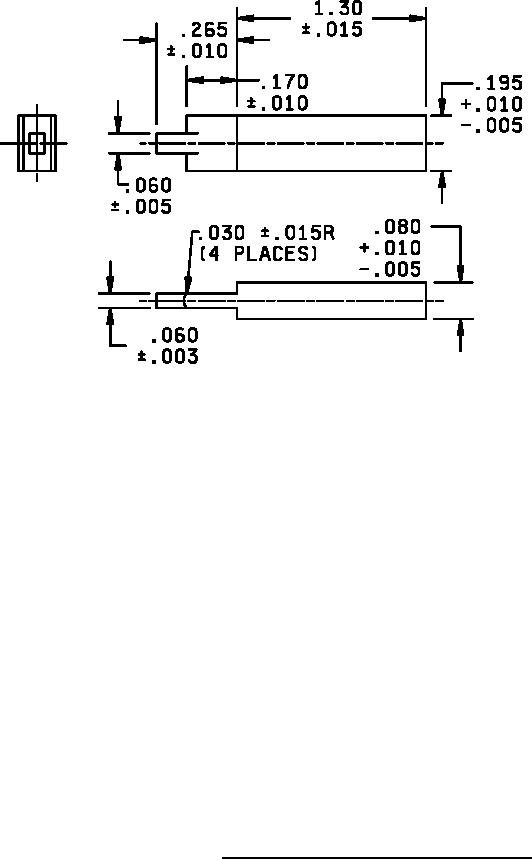

FIGURE 6. T1-3/4 wedge base lamp circuit resistance test plug.
11
