TABLE II. Panel cutout dimensions.
Number
Dimensions A
units
1
.742
2
1.612
3
2.482
4
3.352
5
4.222
6
5.092
n
A = .742 + .870 (n-1)
Inches
mm
.008
0.20
.034
0.86
.10
2.5
.742
18.85
.870
22.10
1.612
40.94
2.482
63.04
3.352
85.14
4.222
107.24
5.092
129.34
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are .015 (0.38 mm) for three-place decimals and
03 (0.8 mm) for two-place decimals.
4. Dimensions apply for both vertical and horizontal (shown) slot mounting.

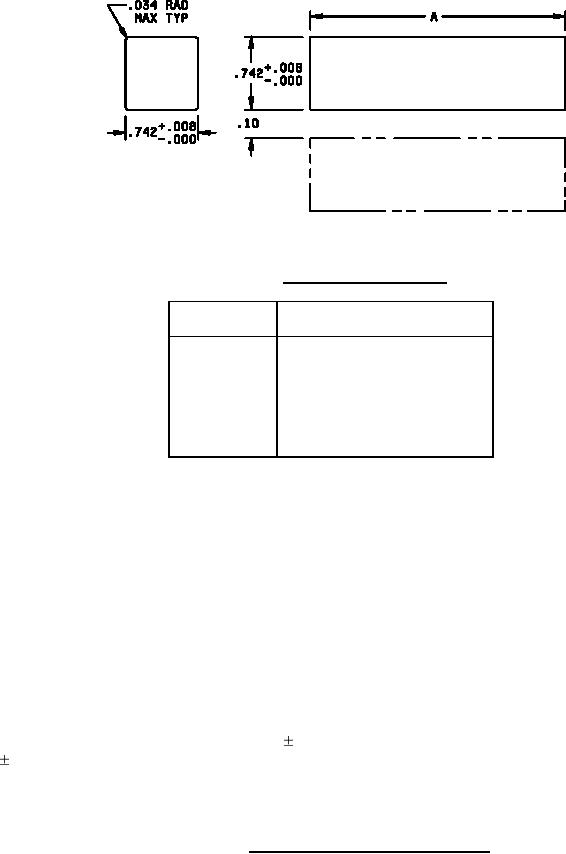

FIGURE 3. Horizontal and vertical slot mounting.
