MIL-PRF-22885-80 Switch, Pushbutton, Illuminated, 4-Lamp Solid Mount, Rfi Shielded, Moisture Sealed, High Impact Shock Resistant

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


MIL-PRF-22885/80H
Switch circuitry
4 PDT Momentary and Alternate Action
NOTE: Terminals shall be permanently identified as shown.;

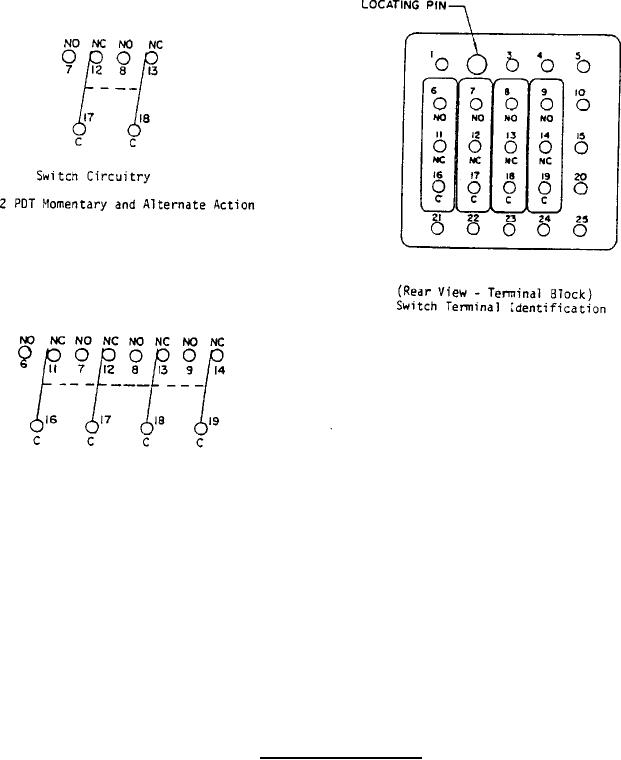

FIGURE 4. Switch circuitry schematics.
