MIL-PRF-22885/80H
Inches
mm
.075
1.90
.250
6.35
.30
7.6
.740
18.80
.990
25.15
1.20
30.5
1.250
32.75
1.45
36.3
3.15
80.0
NOTES:
1. Dimensions are inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (.25 mm).
4. The design configuration is optional within the envelope dimensions shown.

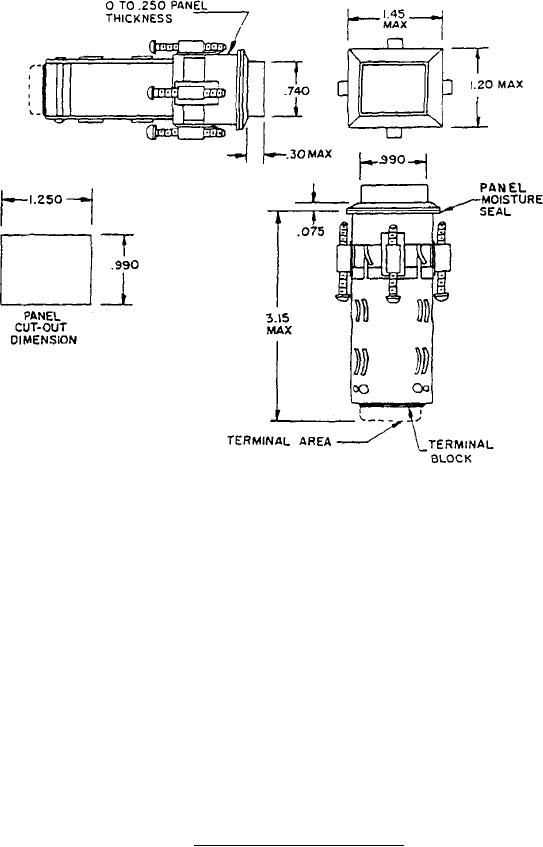

FIGURE 2. Switch, 4-lamp, solid mount, type 2.
