MIL-PRF-22885/111B

Switch body types I, II, IV, and V

Switch body types III and VI

Mounting panel thickness

Switch body types

Panel thickness ranges

I and IV flush

.00 to .92 (0.0 to 23.4)

I and IV extended

.00 to .77 (0.0 to 19.6)

II and V flush

.00 to .88 (0.0 to 22.4)

II and V extended

.00 to .73 (0.0 to 18.5)

III and VI

.00 to .77 (0.0 to 19.6)

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

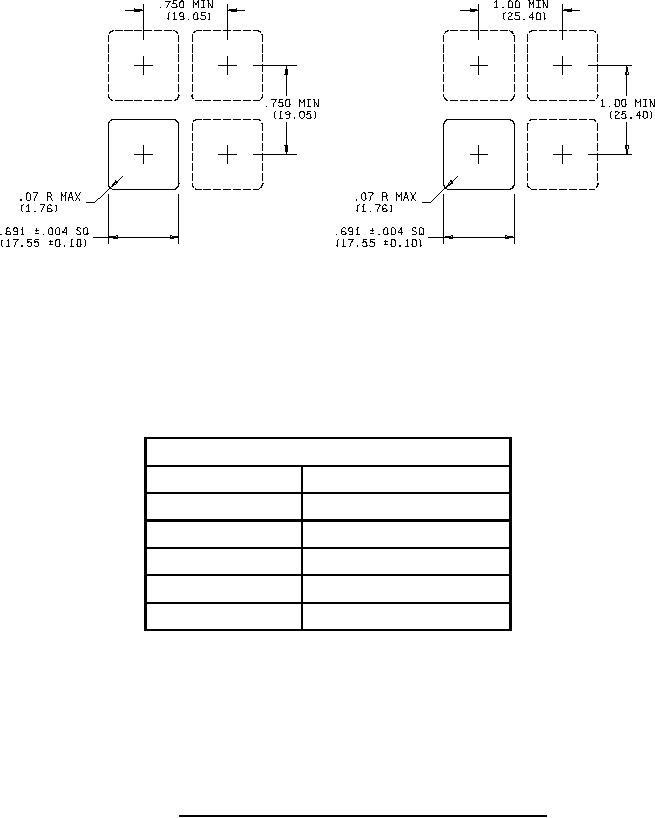

FIGURE 8. Recommended mounting panel cutouts and thickness ranges.
