MIL-PRF-22885/111B

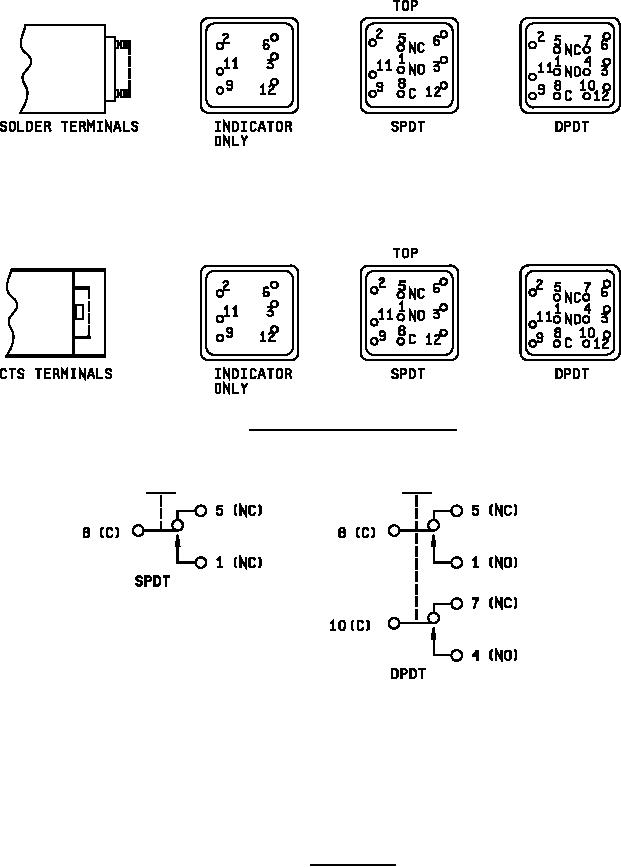

FIGURE 5. Terminal location and identification.
NOTES:
1. Terminals five and seven are normally closed (NC).
2. Terminals one and four are normally open (NO).
3. Terminals eight and ten are common (C).
4. For indicator only, terminals one, four, five, seven, eight, and ten are omitted.
5. For SPDT switch, terminals four, seven, and ten are omitted.
FIGURE 6. Switch circuits.
5
