MIL-PRF-22885/111B
SAE-AS39029/22-192 or
SAE-AS39029/16-168
NOT SUPPLIED
WITH CONNECTOR
Inches
mm
.39
9.9
.44
11.2
Dimension B
.52
13.2
Contact Part Number
(inches)
.98
24.9
M39029/22-192
1.30
1.30
33.0
M39029/16-168
1.43
1.43
36.3
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.03.
4. Pushbutton design shall provide a means to prevent incorrect installation and a means of retention with
switch body during service.
5. The CTS receptacle assembly shall be removable from switch module and switch housing unit
assembly.
6. The switch module is an integral part of the switch housings and CTS unit assembly.
7. The CTS pins shall be M39029/22-192 or M39029/16-168 and shall be removable from the CTS
module assembly. The CTS pins accept 20, 22, or 24 gauge wire.
8. See figure 8 for recommended mounting panel cutouts and thickness ranges.

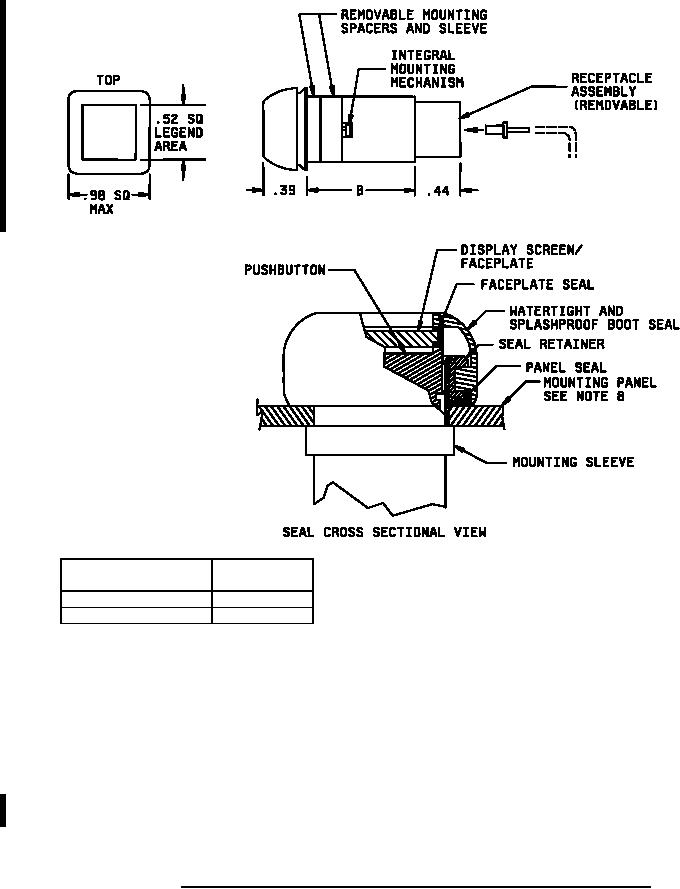

FIGURE 4. Switch - type VI (watertight and splashproof seal, common termination system).
4
