INCH-POUND
MIL-PRF-22885/111B
19 April 2010
SUPERSEDING
MIL-PRF-22885/111A
5 September 2000
PERFORMANCE SPECIFICATION SHEET
SWITCHES, PUSHBUTTON, LIGHT EMITTING DIODE (LED) ILLUMINATED,
STANDARD, NIGHT VISION IMAGING SYSTEM (NVIS) AND SUNLIGHT READABLE DISPLAYS,
SPDT AND DPDT, LOW LEVEL TO 7 AMPERES, SEALED AND UNSEALED,
SOLDER AND COMMON TERMINATION SYSTEM (CTS) TERMINATIONS
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein shall consist of this specification sheet and
MIL-PRF-22885.
PANEL
SEALS
Inches
mm
NOTES:
.03
0.8
1. Dimensions are in inches.
.14
3.6
2. Metric equivalents are given for general information only.
.20
5.1
3. Unless otherwise specified, tolerance is ±.03.
.24
6.1
4. Pushbutton design shall provide a means to prevent incorrect installation and a
.35
8.9
means of retention with switch body during service.
.39
9.9
5. See figure 8 for recommended mounting panel cutouts and thickness ranges.
.52
13.2
.75
19.1
1.21
30.7

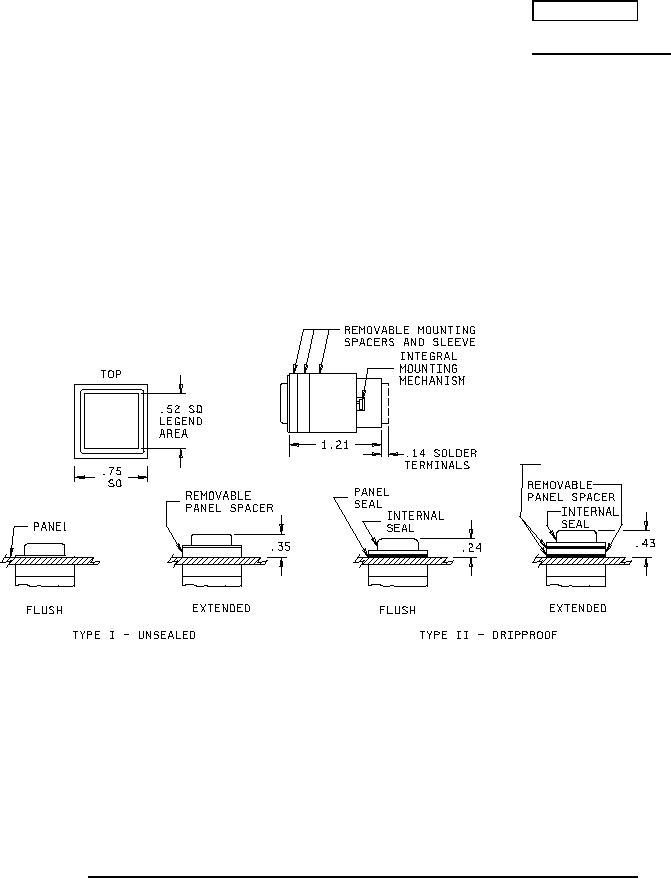

FIGURE 1. Switches - type I (unsealed, solder terminals) and type II (dripproof seal(s), solder terminals).
AMSC N/A
FSC 5930
