MIL-PRF-22885-102 Switch, Pushbutton, 4-Lamp, Pushbutton And Lens Assemblies For, .610 Square \(Dripproof, Sunlight Readable, Emi/Rfi Shielded\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-22885/102D
INCHES
MM
.085
2.16
.262
6.66
.544
13.82

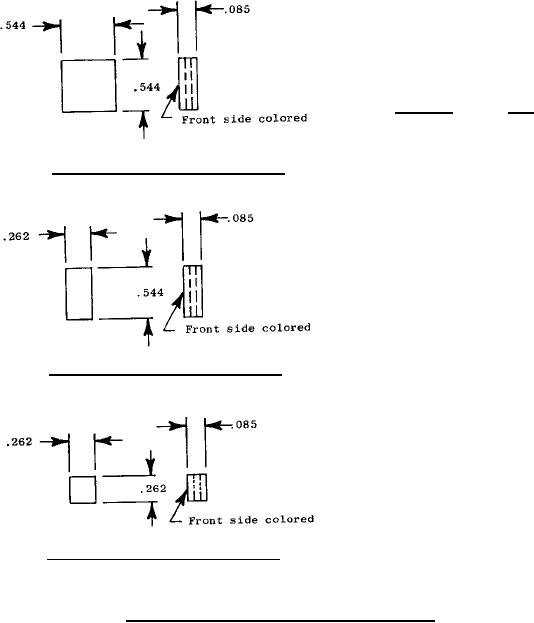

LENS STYLE 7: LAMINATED FILTER
LENS STYLE 8: LAMINATED FILTER
LENS STYLE 9: LAMINATED FILTER
FIGURE 6. SPARE PART, LAMINATED FILTER, TYPE C
NOTES:
1. Dimensions are in inches.
2. Unless otherwise stated, tolerances are ±.010 for three place decimals and ±.03 for
two place decimals.
