MIL-PRF-22885-102 Switch, Pushbutton, 4-Lamp, Pushbutton And Lens Assemblies For, .610 Square \(Dripproof, Sunlight Readable, Emi/Rfi Shielded\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-22885/102D

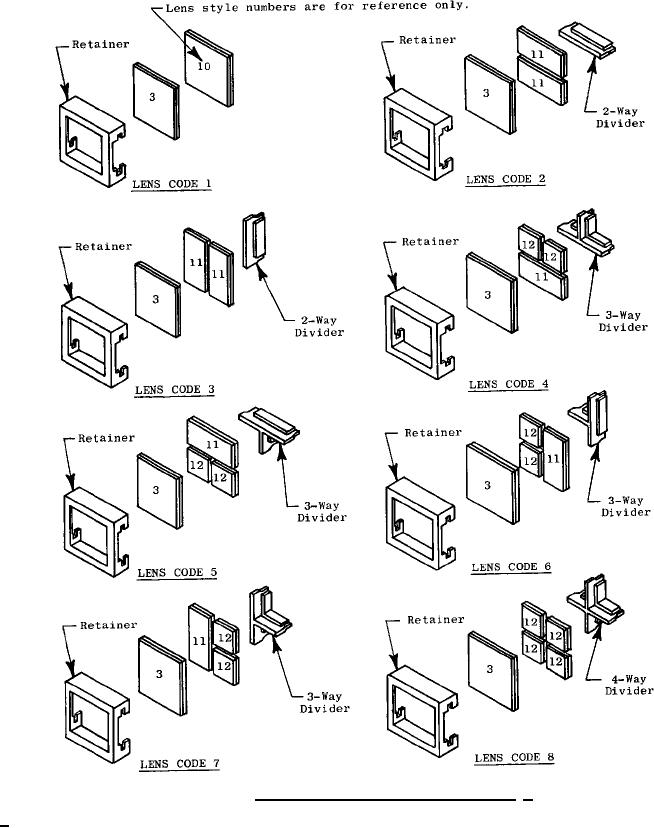

FIGURE 13. LENS ASSEMBLY DIAGRAM, TYPE S 1/
1/ Lens assembly diagram for Type S displays for reference only. Type S displays shall be procured as
complete laminated assemblies.
