MIL-PRF-22885/102D
INCHES
MM
.030
.76
.047
1.19

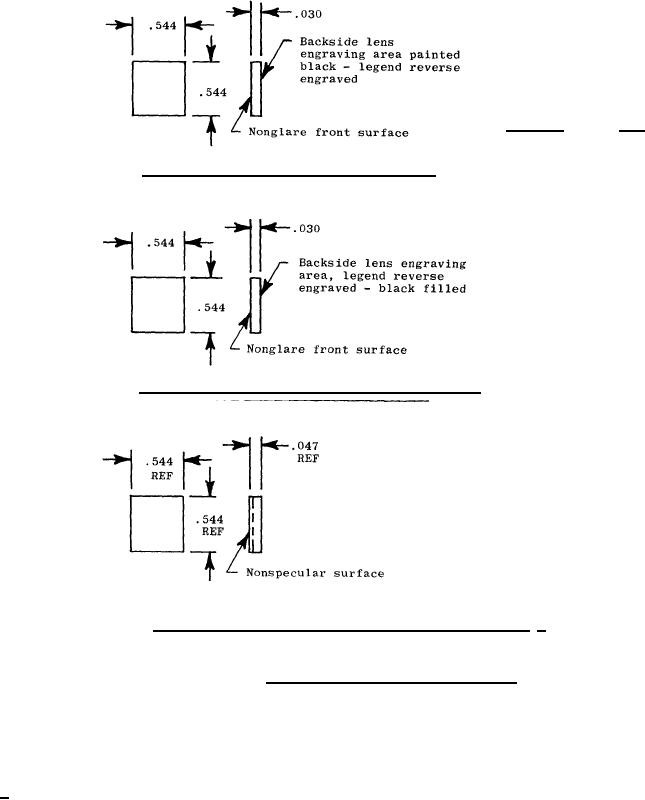

LENS STYLE 1: FRONT LENS PLATE, TYPE N
.544
13.82
LENS STYLE 2: FRONT LENS PLATE, TYPE W AND C
LENS STYLE 3: FRONT LENS PLATE, LAMINATED, TYPE S 3/
FIGURE 4. SPARE PART, FRONT LENS PLATE
NOTES:
1. Dimensions are in inches.
2. Unless otherwise stated, tolerances are ±.010 (0.25 mm) for three place decimals
and ±.03 (0.8 mm) for two place decimals.
3/ For reference only. Lens Style 3 must be procured as total laminated assembly of
lens Type S.
4
