MIL-PRF-22885/102D
INCHES
MM
.63
16.0
.69
17.5
.99
25.1
DIM B
SHORT VERSION
.69
EXTENDED VERSION
.99
Lamp Circuit 1 and 4
Style A Without EMI/RFI Shielding
Style E With EMI/RFI Shielding 4/
Lamp Circuit 3
Style B Without EMI/RFI Shielding
Style F With EMI/RFI Shielding 4/

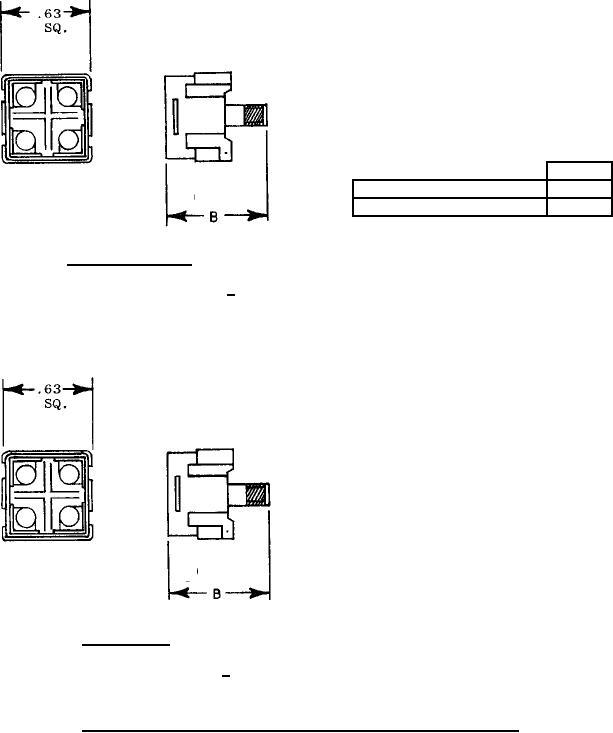

FIGURE 3. SPARE PART, PUSHBUTTON STYLES, (UNSEALED) A, B, E, F
NOTES:
1. Dimensions are in inches.
2. Unless otherwise stated, tolerances are ±.010 (0.25 mm) for three place decimals
and ±.03 (0.8 mm) for two place decimals.
3. The design configuration is optional within the envelope dimensions shown.
4. EMI/RFI screen not shown for clarity.
3
