MS39061D

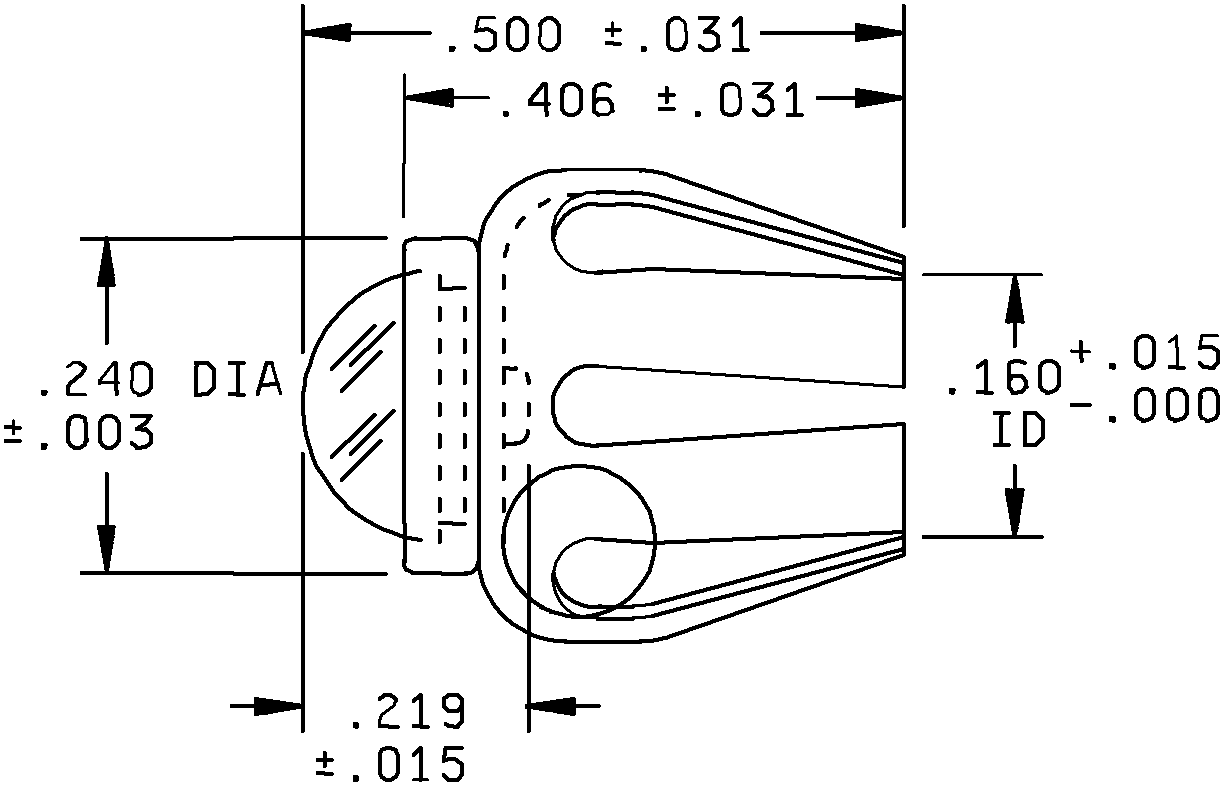

FIGURE 2. Luminous dimensions
REQUIREMENTS:
Dimension and configuration: See figure 1. Terminals:
Configuration A: MS33800 or equivalent. Wire leads (when applicable), shall be 16 AWG, M13486/1-
3 in accordance with MIL-DTL-13486, color black. Each lead wire shall be marked with numerals 1 through 3. Non-functional lead wires shall not be supplied.
Configuration B or C: MS27142-2 or equivalent. Wire leads (when applicable), shall be 14 AWG, M13486/1-5 in accordance with MIL-DTL-13486, color black. Each lead wire shall be marked with numerals 1 through 3. Non-functional lead wires shall not be supplied.
Switching characteristics: See table II. Direction of movement of internal mechanism is opposite to the direction of the toggle movement.
Sealing: The switches shall be immersed in an enclosure containing water. The enclosure shall be subjected to a vacuum resulting in an absolute pressure equal to 2.0 ±0.5 inches of mercury for 5 minutes. The immersed switches shall be observed for leakage as evidenced by a continuous stream of bubbles emanating from the water prior to release of the vacuum.
Electrical ratings: See table I.
Contact voltage drop: Shall not exceed 50 millivolts when tested using load of 100 milliamperes at 2-6 volts dc. Switch contacts shall be actuated 3 times prior to taking the final measurement.
Part or Identifying Number (PIN): See table II.
5
