MIL-PRF-8805/98E
Inches
mm
Inches
mm
Inches
mm
.038
0.97
.470
11.94
1.05
26.7
.050
1.27
.560
14.22
1.100
27.94
.062
1.57
.670
17.02
1.140
28.96
.072
1.83
.690
17.53
1.150
29.21
.240
6.10
.760
19.30
1.170
29.72
.42
10.7
.930
23.62
1.300
33.02
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.015 (0.38 mm) for decimals and ±5° for angles.
4. Design configuration optional provided maximum dimensions are not exceeded.
5. Basic switch identification shall be permanently marked on the basic switch as shown.
6. Basic switch terminals shall be single turret (as shown) and shall accept AN-20 wire or equivalent.
7. Alternative base metals and protective finishes, as approved by the qualifying activity, may be utilized for hexagon
nut, lock washer and key washer material. Dimensions shall be in accordance with the referenced hardware
specifications.
FIGURE 1. Configurations and dimensions - continued.

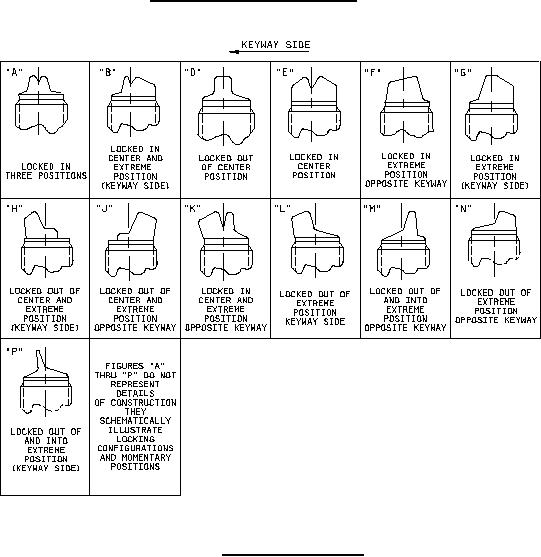

FIGURE 2. Locking arrangement.
