MIL-PRF-22885/91C
Basic dimensions for strip mounting are .800 (20.32 mm) for square units. .800 (20.32 mm) and 1.200 (30.48 mm)
for the rectangular units.
NOTES:
1. Dimensions for square: .800 (20.32 mm) typ.
Dimensions for rectangular: 1.200 (30.48 mm) typ (horizontal.
800 (20.32 mm) typ (vertical).
2. Component side shown.
3. Basic dimensions for each component hole pattern spacing are the nominal dimensions
as shown on figures 3 and 4 for printed circuit terminals.
4. Dimensions are in inches.
5. Metric equivalents are given for general information only.
6. Metric equivalents are in parentheses.

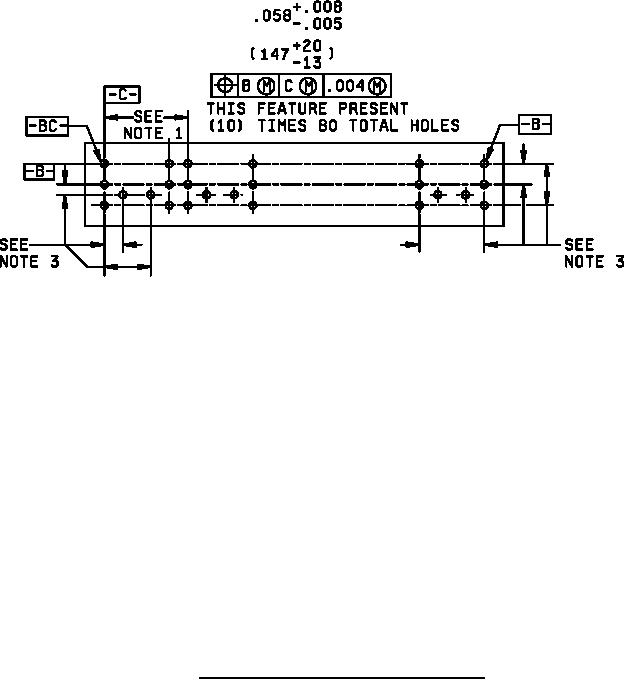

FIGURE 6. Printed circuit board dimensions for strip mount.
9
