MIL-PRF-22885-90 Switch, Pushbutton, Illuminated, 4-Lamp, 0.750 Square, Low Level To 7 Amperes, \(Dripproof, Emi/Rfi Shielding, Night Vision Goggle Compatible\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13

MIL-PRF-22885/90C

Inches

0.25

.010

0.79

.031

1.57

.062

7.14

.281

17.50

.689

19.05

.750

.970

24.64

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

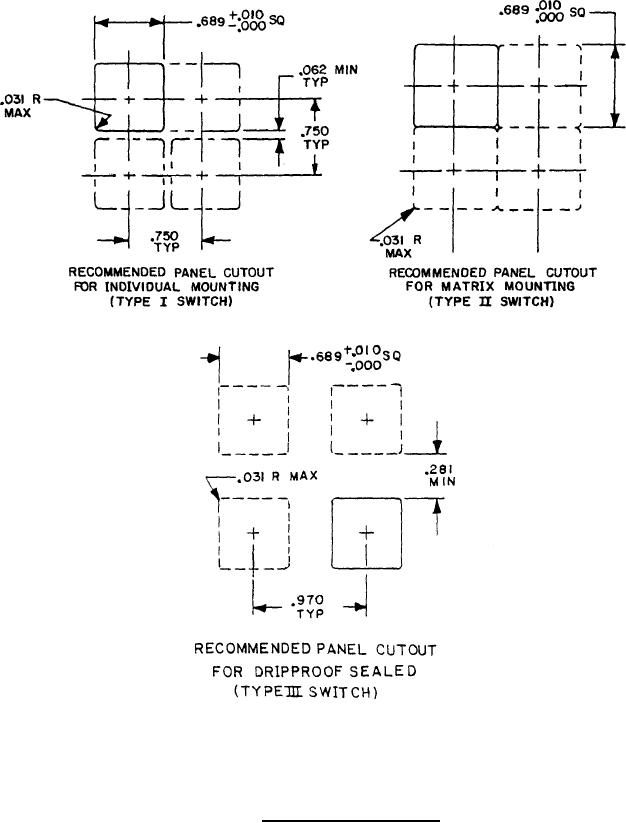

FIGURE 6. Recommended panel cutouts.
