MIL-PRF-22885/90C
Inches
mm
.19
4.6
.27
6.9
.45
11.4
.960
24.38
1.72
43.7
1.88
47.8
1.91
48.5
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for three place decimals and ±.03 (0.8 mm) for
two place decimals.
4. Unit mounts in panels from .031 to .19 (0.79 to 4.8 mm) thick.
5. A spacer is supplied with each switch unit for MIL-P-7788 panel requirements.
6. Spacer to be used only for edge-light panels, discard otherwise.
7. Mounting sleeve shall not exceed .760 (19.30 mm) square and shall be reversible to accommodate edge-light
panel spacer requirements.
8. Pushbutton is designed to prevent incorrect insertion into switch housing.
9. Exact shape of switch optional provided dimensions specified are not exceeded.
10. Terminal dimensions are not applicable to printed circuit board terminations.

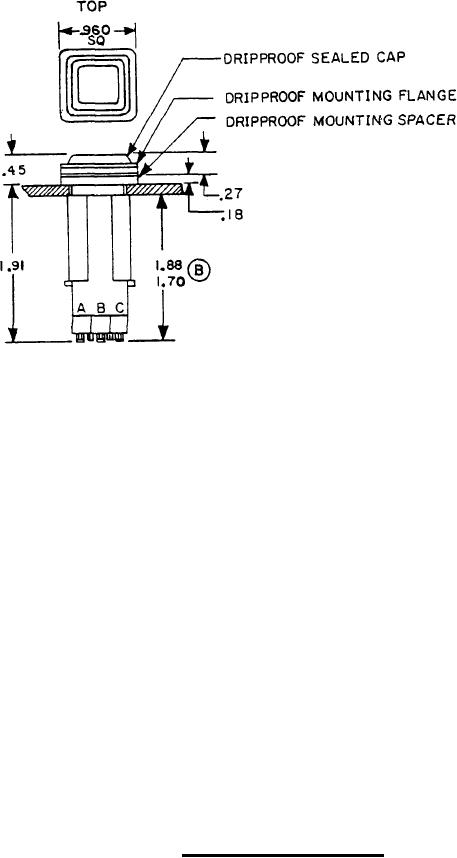

FIGURE 3. Switch, dripproof sealed (type III).
4
