MIL-PRF-22885/90C
Inches
mm
0.25
.010
1.3
.05
2.29
.090
2.36
.093
2.5
.10
3.18
.125
13.5
.53
17.48
.688
25.7
1.01
57.7
2.27
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for three place decimals and ±.03 (0.8 mm) for
two place decimals.
4. Pushbutton is designed to prevent incorrect insertion into switch housing.
5. Exact shape of switch optional provided dimensions specified are not exceeded.
6. Terminal dimensions are not applicable to printed circuit board terminations.

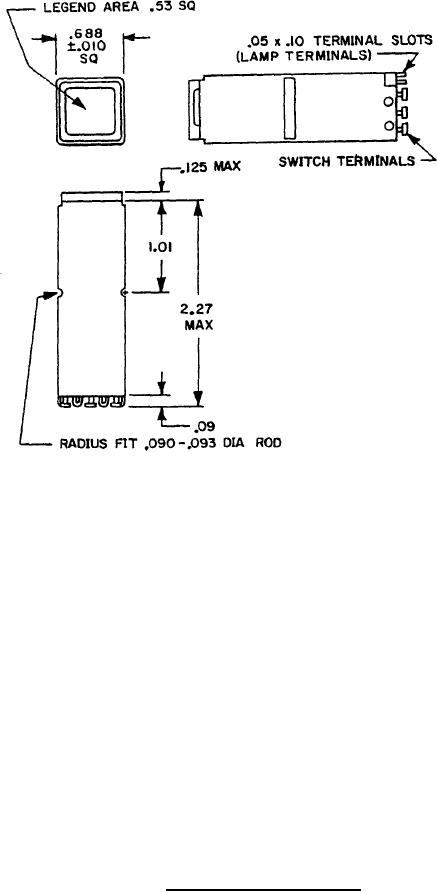

FIGURE 2. Switch, matrix mounted (type II).
