MIL-PRF-22885/89C

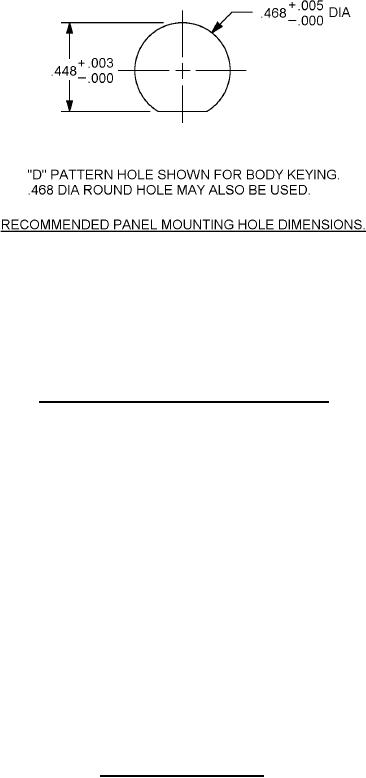

"D" PATTERN HOLE SHOWN FOR BODY KEYING
.468 DIA., ROUND HOLE MAY ALSO BE USED
Recommended panel mounting hole dimensions
Inches
mm
.003
0.08
.005
0.13
.448
11.38
.468
11.89
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
3. Unless otherwise specified, tolerances are ± .019 (0.25 mm) for two place decimals and ±.005 (0.13 mm)
for three place decimals.
4. Unit mounts in panels from .010 (0.25 mm) to .20 (5.1 mm) thick.
5. Basic switches shall be MIL-PRF-8805/4 (PIN:MS24547-1 or MS24547-2) as listed on QPL-8805.
6. Terminals shall be permanently identified as shown in schematic.
FIGURE 1. Basic switch body less lens - Continued.
2
