MIL-PRF-22885/83E
Inches
mm
.005
0.13
.010
0.25
.015
0.38
.210
5.33
.360
9.14
.785
19.94
.880
22.35
1.082
27.48
1.210
30.73
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. The switch guard prevents movement of the actuating means when the guard is in a closed position.
The guard shall be maintained in the closed position by a spring mechanism.

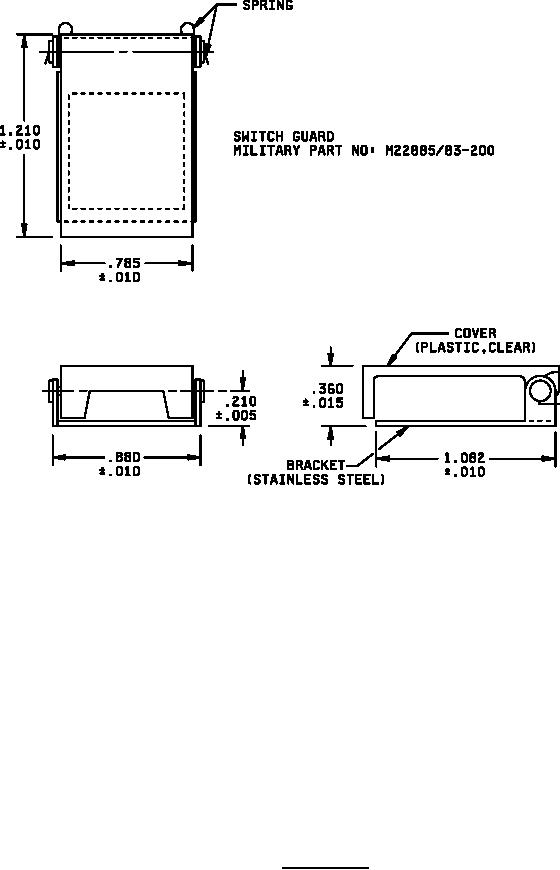

FIGURE 2. Switch guard.
