MIL-PRF-22885/83E
Inches
mm
.010
0.25
.016
0.41
.028
0.71
.031
0.79
.052
1.32
.100
2.54
.180
4.57
.190
4.83
.550
13.97
.585
14.86
.658
16.71
.688
17.48
.699
17.75
.750
19.05
2.330
59.18
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are .005 (.013 mm).
4. All terminals shall be insulated from the case.
5. All terminals and basic switches shall be permanently identified as shown.
6. Basic switch shall be MIL-PRF-8805/4 switch listed on QPL-8805.
7. Cap assemblies shall be held captive to base assemblies by retaining element to prevent accidental
interchange.
8. Exact shape of switch optional provided dimensions specified are not exceeded.

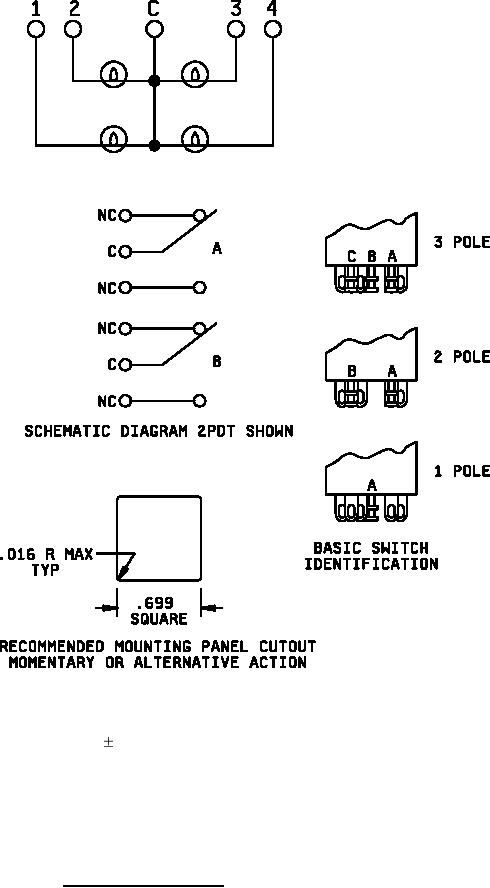

FIGURE 1. Design and construction - Continued.
2
