MIL-PRF-22885/56H
Inches
mm
.008
.20
.035
.89
.060
1.52
.742
18.85
TABLE II. Panel cutout dimensions.
NO
DIMENSION A
UNITS
+000/-.008
1
.750 (19.05)
2
1.550 (39.37)
3
2.360 (59.94)
4
3.165 (80.39)
5
3.970 (100.84)
6
4.775 (121.29)
N
.805 (N-1)+.750
(20.45)(N-)+(19.05)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.
4. Dimensions apply for both vertical and horizontal (shown) slot mounting.

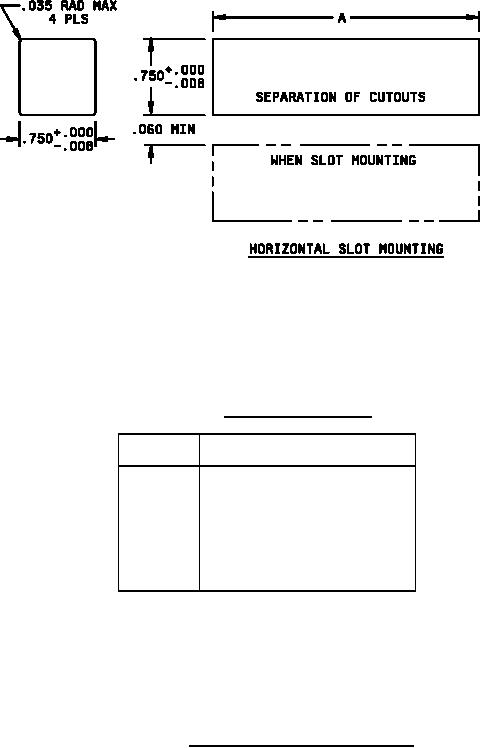

FIGURE 4. Horizontal and vertical slot mountings.
