INCH-POUND
MIL-PRF-22885/105C
4 June 2010
SUPERSEDING
MIL-PRF-22885/105B
2 April 2004
PERFORMANCE SPECIFICATION SHEET
SWITCH, PUSHBUTTON, ILLUMINATED, PLUG-IN,
SWITCH MODULE FOR, 2PDT, 4PDT
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein shall consist of this specification sheet and MIL-PRF-22885.
LATCH LEVER
PUSHBUTTON RELEASE
2.23
2.25
(36.6)
(57.2)
.20
(5.1)
STYLE C
STYLE S
POSITIVE INDEX POST
FOR PUSHBUTTON
INSTALLATION
1.44
JACKSCREW
(36.6)
.25
(6.4)
COMBINATION TERMINAL
SOLDER OR SPADE LUG
STYLE I

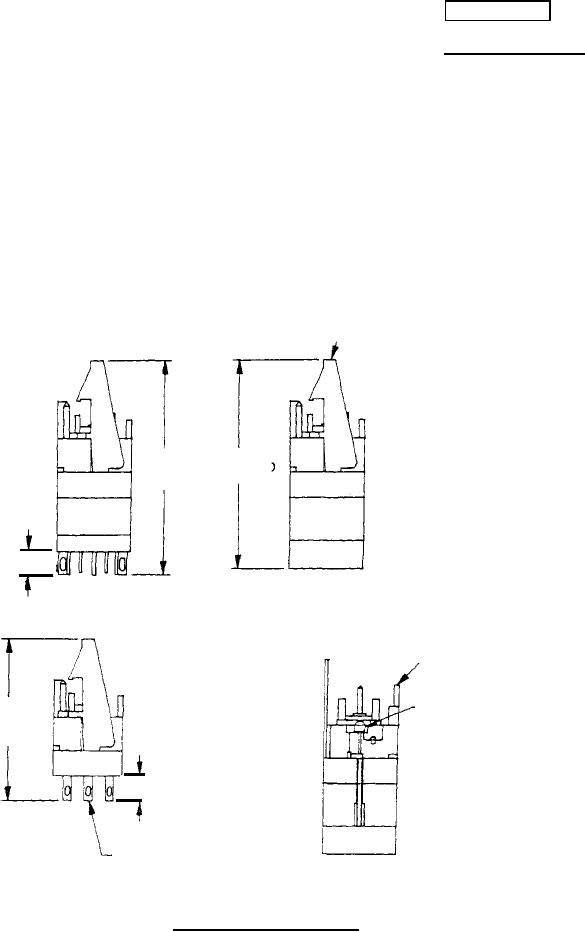

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5930
