MIL-PRF-22710/15H
No. of
Dimensions
Modules
D
B
1
0.926 ( 23.52) 1.094
( 27.79)
2
1.428 ( 36.270 1.596
( 40.54)
3
1.930 ( 49.02) 2.098
( 53.29)
4
2.432 (61.77) 2.600 ( 66.04)
5
2.934 ( 74.52) 3.102 ( 78.79)
6
3.346 ( 84.99) 3.604 ( 91.54)
7
3.938 (100.03) 4.106 (104.29)
8
4.440 (112.78) 4.608 (117.04)
9
4.942 (125.53) 5.110 (129.79)
10
5.444 (138.28) 5.612 (142.54)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Metric equivalents are given for general information only and are base upon 1 inch = 25.4 mm.
4. Unless otherwise specified, tolerance it .101 (.25 mm).
5. Black matte finish over silver - for all surfaces exposed from front of panel.
6. No color coating to be applied over silver in this area (4 places).
7. No paint .45/.60 diameter of thumbwheel.
8. Minimum silvered surface, measured from mounting surface.
9. No paint on window.

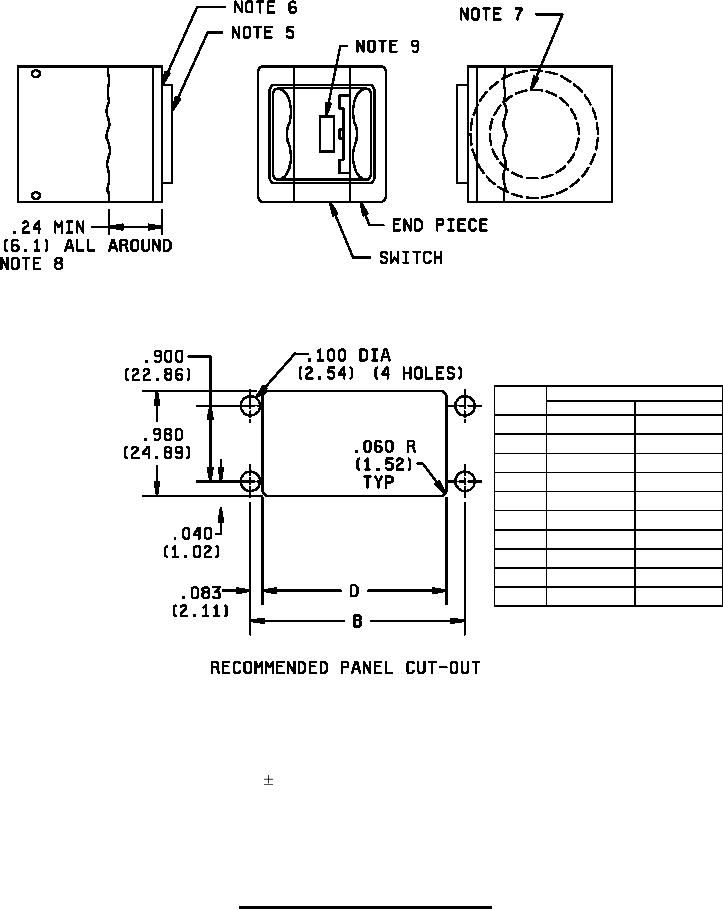

FIGURE 2. RFI Shielded switch and panel cut-out
3
