INCH-POUND
MIL-DTL-9395/5E
3 October 2006
SUPERSEDING
MIL-DTL-9395/5D
30 May 2001
DETAIL SPECIFICATION SHEET
SWITCHES, PRESSURE, (GAGE), TYPE II, SPST, 5 AMPERES
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein shall consist of this document and MIL-
DTL-9395.
SAE AS4395-E04
81044/12
Inches
mm
.010
0.25
.055
1.40
.080
2.03
.500
12.70
.750
19.05
1.12
28.45
2.51
63.75
18.00
457.20
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
3. Unless otherwise specified, tolerances are ± .005 (0.13 mm) for three decimals and ±.02 (0.51 mm) for
two place decimals.
4. Exact shape of switch optional provided dimensions specified are not exceeded.

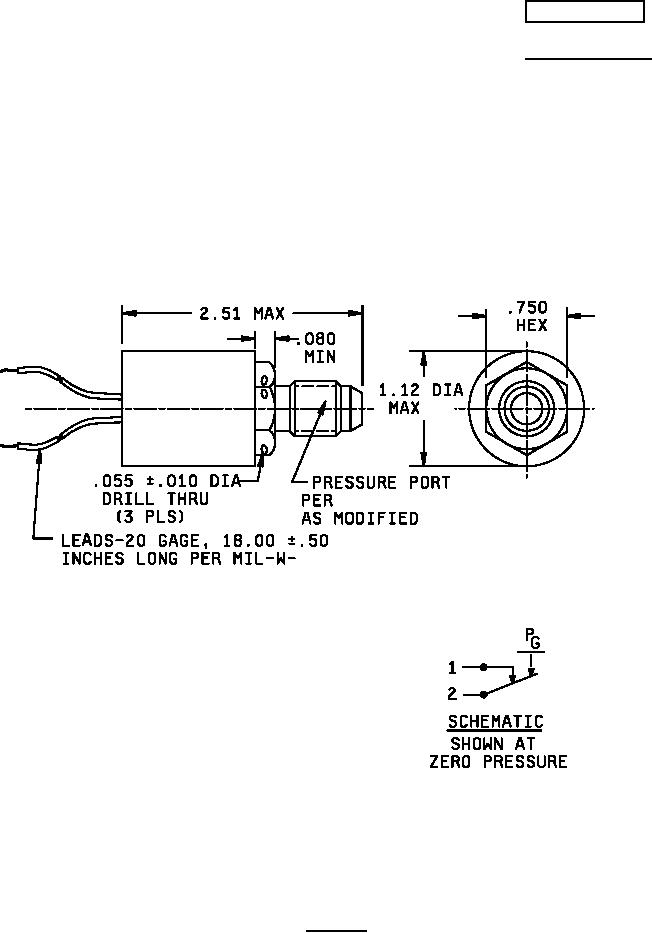

FIGURE 1. Switches.
AMSC N/A
FSC 5930
