MIL-DTL-9395/2D
INCHES
MM
INCHES MM
.06
1.5
1.12
28.4
.210
5.33
1.44
36.6
.56
14.2
1.50
38.1
.70
17.8
4.12 104.6
.94
23.9

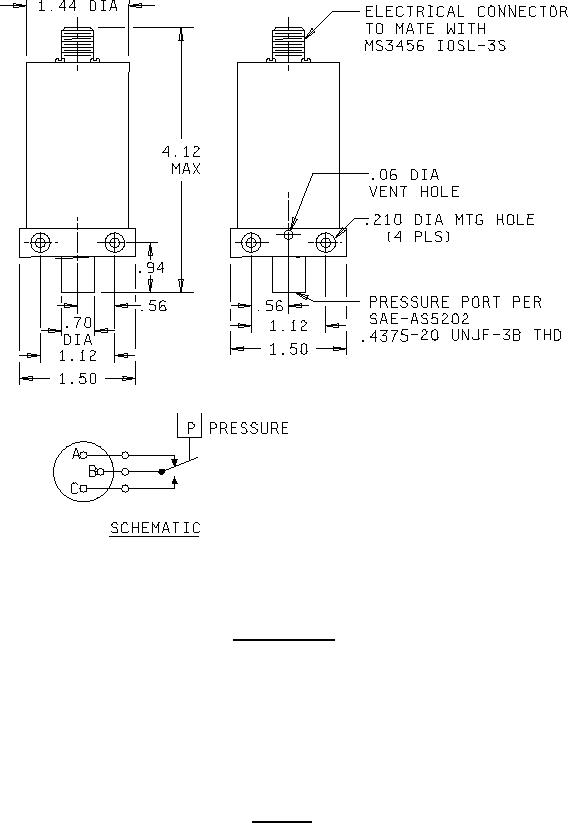

Configuration 2
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1 inch = 25.4 mm.
3. Unless otherwise specified, tolerances are ±.005 (.13 mm) for three decimals and ±.02 (.51 mm) for
two decimals.
4. Exact shape of switch optional provided dimensions specified are not exceeded.
5. Schematic illustrated at sea level barometric pressure 29.92 in (759.97 mmHg).
FIGURE 1. Switches - Continued.
2
