MIL-DTL-5423/16E

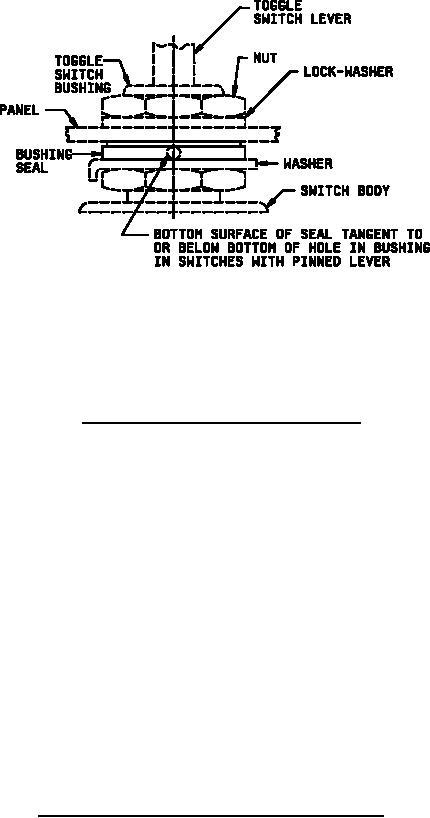

DETAIL OF BUSHING SEAL ASSEMBLY
Inches
mm
Inches
mm
.015
0.38
.420
10.67
.062
1.57
.432
10.97
.072
1.83
.461
11.71
.083
2.11
.472
11.99
.105
2.67
.650
16.51
.120
3.05
.677
17.20
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.15 (0.38 mm) for three place decimals.
4. This seal is intended for use with toggle switches per MIL-DTL-3950, MIL-DTL-8834,
and MIL-DTL-83731.
5. Bushing seal to be assembled so that surface marked "Top" is up, or "Bottom" is down.
FIGURE 1. Dimensions and configuration boots type A, style 10 Continued.
2
