INCH-POUND
MIL-DTL-5423/16E
17 February 2009
SUPERSEDING
MIL-DTL-5423/16D
AMENDMENT 1
12 May 2003
DETAIL SPECIFICATION SHEET
BOOT, DUST AND WATER SEAL, BUSHING SEAL, TYPE A
(FOR TOGGLE SWITCH 0.469 DIAMETER) STYLE 10 (PANEL BUSHING SEAL ONLY)
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5423.
ALTERNATE CONFIGURATION
BOTH VERSIONS ARE ACCEPTABLE AND ARE MUTUALLY INTERCHANGEABLE
PROVIDED THEY MEET THE SPECIFIED REQUIREMENTS

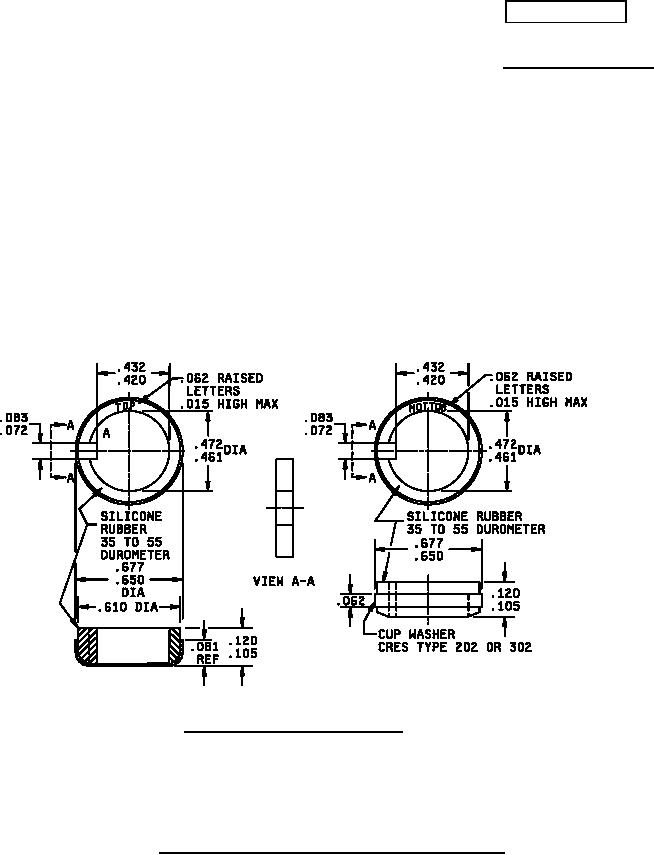

FIGURE 1. Dimensions and configuration boots type A, style 10.
AMSC N/A
FSC 5930
