MIL-DTL-3786/35E
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.005 (.13 mm) and ±3° on angles (noncumulative).
4. Shaft flat angle A° is the angle between a line through the center of the shaft perpendicular to the
mounting bushing flats and another line through the center of the shaft and perpendicular to the
shaft flat with switch in position number one. For switches with a slotted shaft, the slot is in line with
the point of contact for pole number one.
5. Position number one and terminal number one coincide.

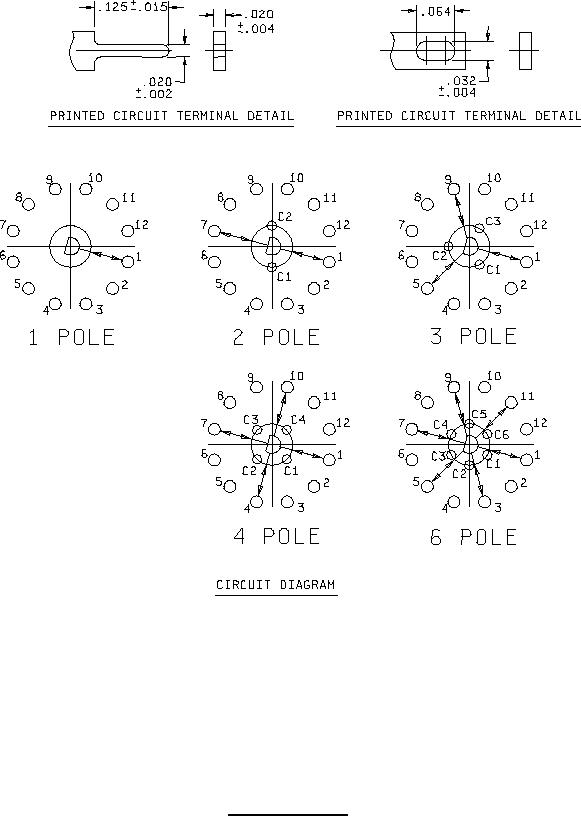

FIGURE 1. Switch style SR35 - Continued.
