MIL-DTL-3786/28E

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only

and are based upon 1.00 inch = 25.4 mm.

3. Unless otherwise specified, tolerances are �.015 (0.38 mm)

and �3� on angles.

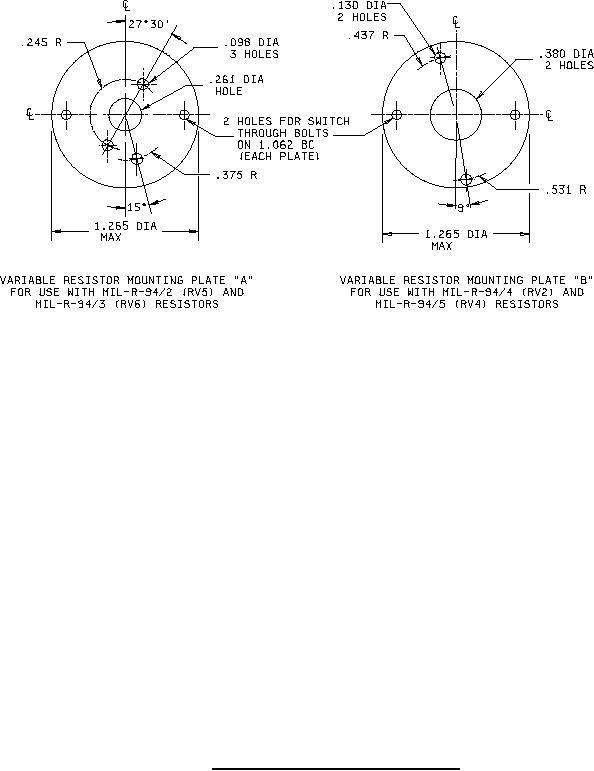

FIGURE 2. Resistor mounting plates, for SR28-3.
