INCH-POUND
MIL-DTL-15743/17B
12 March 2007
SUPERSEDING
MIL-DTL-15743/17A
26 November 2002
DETAIL SPECIFICATION SHEET
SWITCH, ROTARY, ENCLOSED, SUBMERSIBLE (15 FEET), CONTACT MAKER,
SIX POLE, TWO-POSITION, SPRING-RETURN, 125 VOLTS ALTERNATING CURRENT,
10 AMPERE, SYMBOL 2638.1
This specification is approved for use by all Departments and Agencies of the
Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and the
latest issue of MIL-DTL-15743.

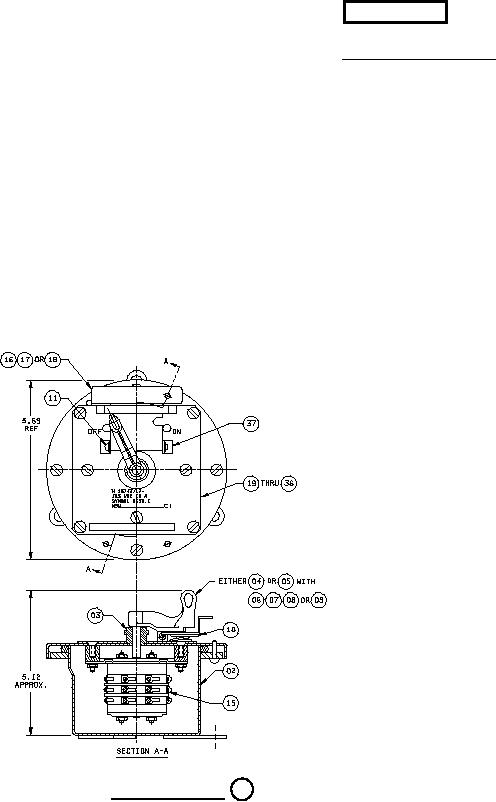

FIGURE 1. Switch, enclosed. 01
(001 shown)
NOTES:
1. All dimensions in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
Angular dimensions - plus or minus 30 minutes.
