INCH-POUND MS75075D
21 July 2005
SUPERSEDING MS75075C
22 May 1972
MILITARY SPECIFICATION SHEET SWITCH, TOGGLE, TWO POLE, UNSEALED
INACTIVE FOR NEW DESIGN, DATED 8 MARCH 1999
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-83731.
NOTES:
1. All dimensions are in inches.
2. Unless otherwise specified, tolerance is ± .020 on two place decimals and ± .005 on three place decimals.
3. Contour of switch is optional provided maximum dimensions specified are not exceeded.
4. For hardware detail specifications, see supplement MIL-DTL-83731.

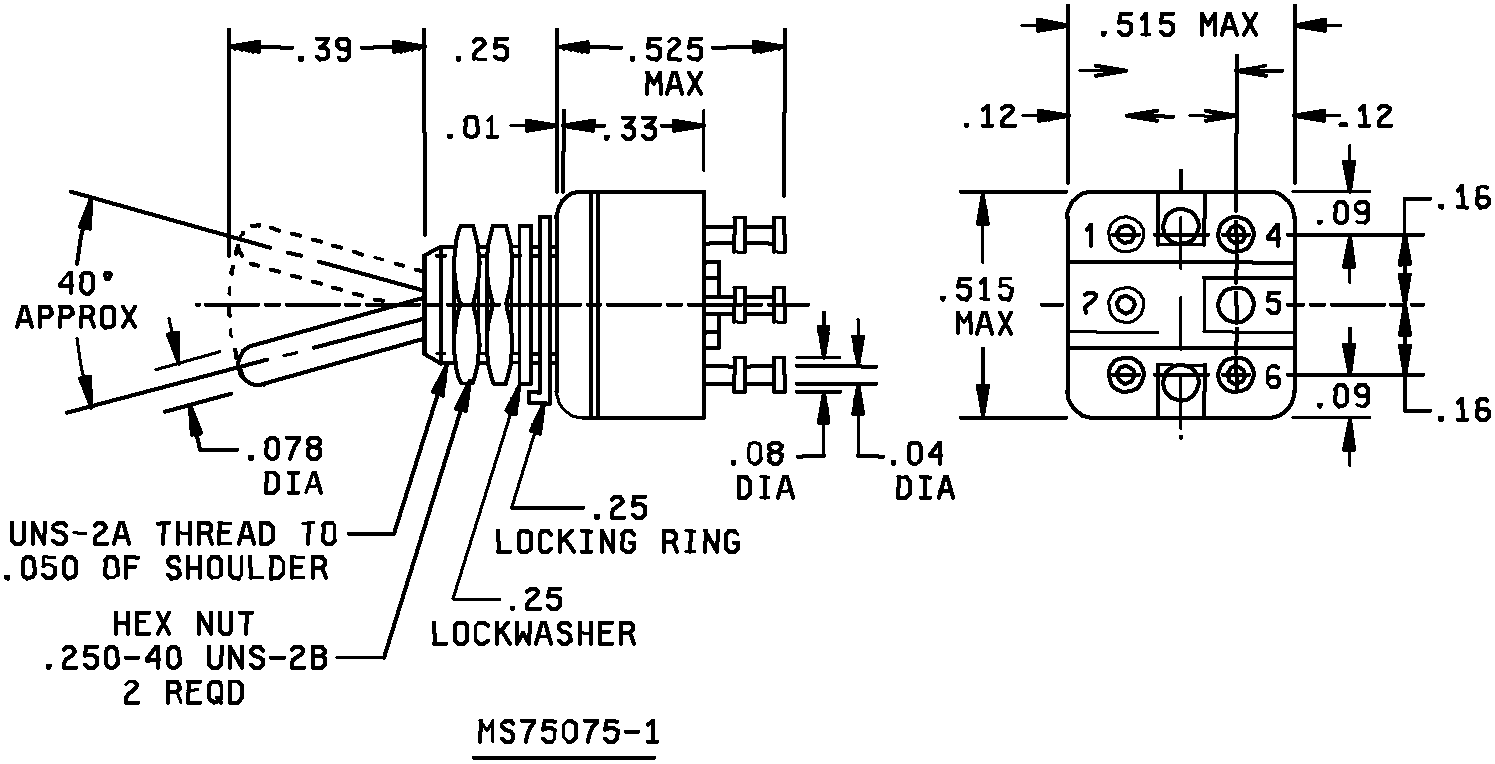

FIGURE 1. Dimensions and configurations.
AMSC N/A 1 of 2 FSC 5930
