MS27722D
Inches |
mm |
Inches |
mm |
Inches |
mm |
.008 |
0.20 |
.240 |
6.10 |
.47 |
11.90 |
.012 |
0.30 |
.375 |
9.52 |
.480 |
12.19 |
.03 |
0.8 |
.38 |
9.70 |
.635 |
16.13 |
.062 |
1.57 |
.432 |
10.97 |
.69 |
17.50 |
.076 |
1.93 |
..445 |
11.30 |
1.270 |
32.26 |
.130 |
3.30 |
.469 |
11.91 |
1.662 |
42.21 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.020 (0.51 mm) for two place decimals and ±.005 (0.13 mm) for three place decimals.
4. Contact installing and removal tool in accordance with M81969/14-03.
5. For hardware detail specifications, see appendix of MIL-S-3950
6. Grommet holes or access to grommet holes, on nonfunctional terminals, optional.
7. The terminal end of the switch shall be color coded blue to indicate contact size.
8. Sealing plugs may be used in nonfunctional grommet holes when applicable.

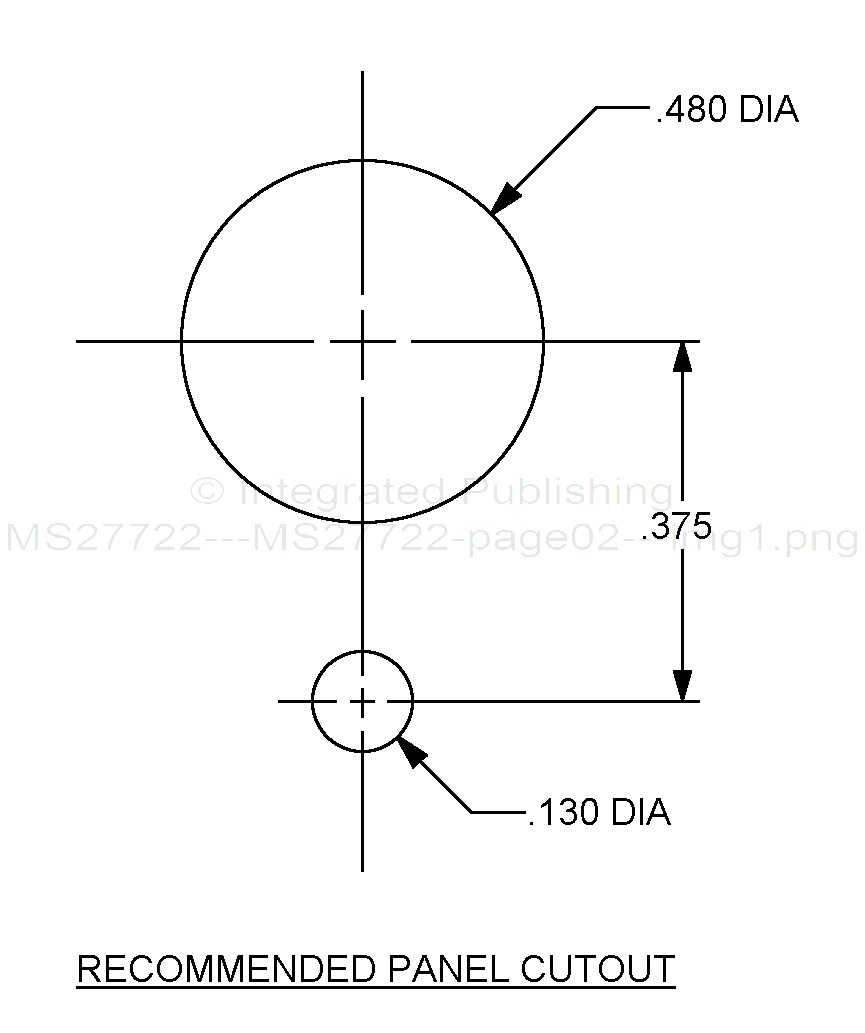

FIGURE 1. Dimensions and configuration
2
