INCH-POUND MS27722D
7 May 2003
SUPERSEDING MS27722C
28 September 1987
MILITARY SPECIFICATION SHEET
SWITCH, TOGGLE, ONE POLE, ENVIRONMENTALLY SEALED, INTEGRATED WIRE TERMINALS
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and MIL-S-3950.

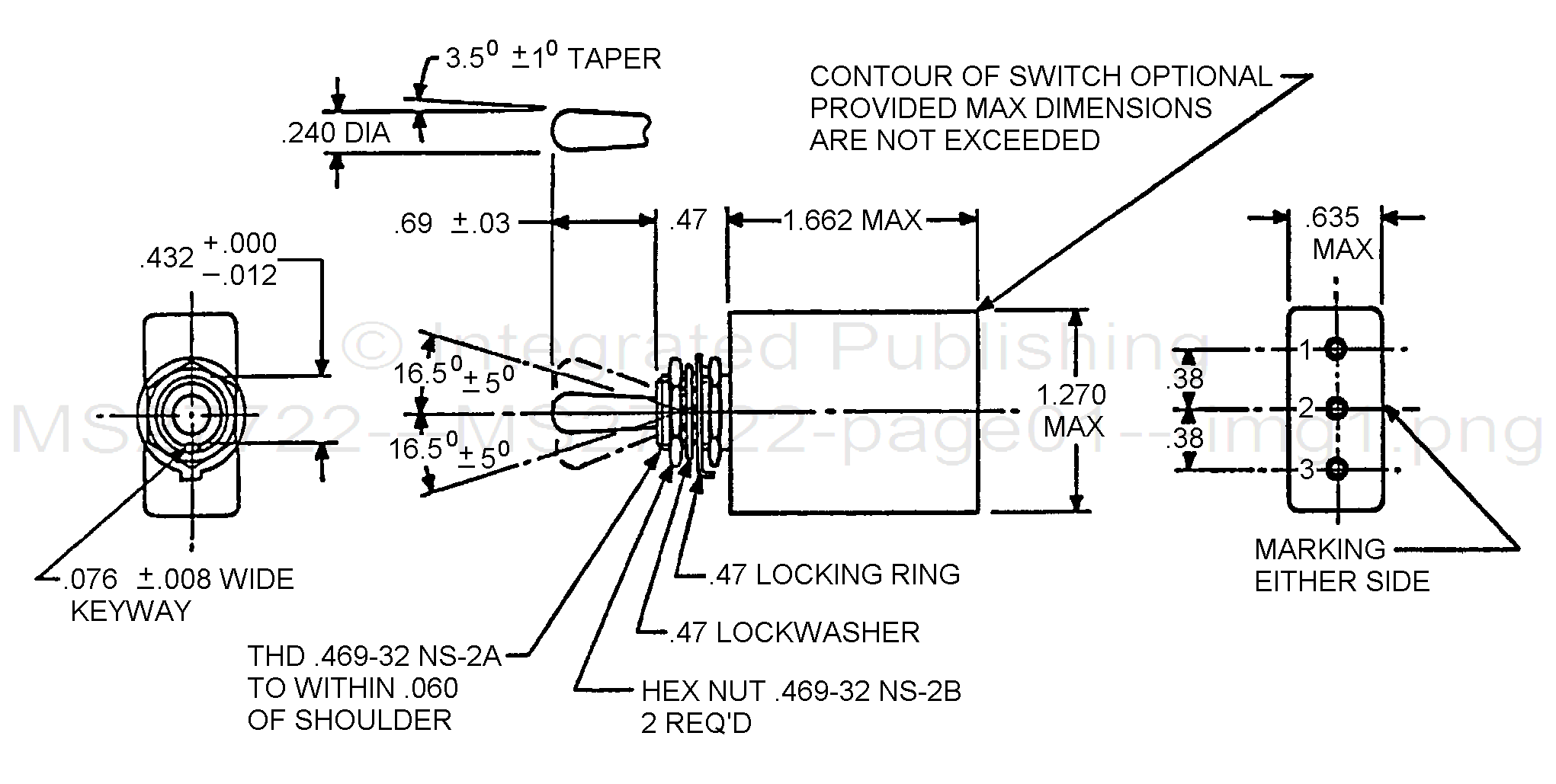

FIGURE 1. Dimensions and configuration.
AMSC N/A 1 of 4 FSC 5930
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
